2. Installation
21

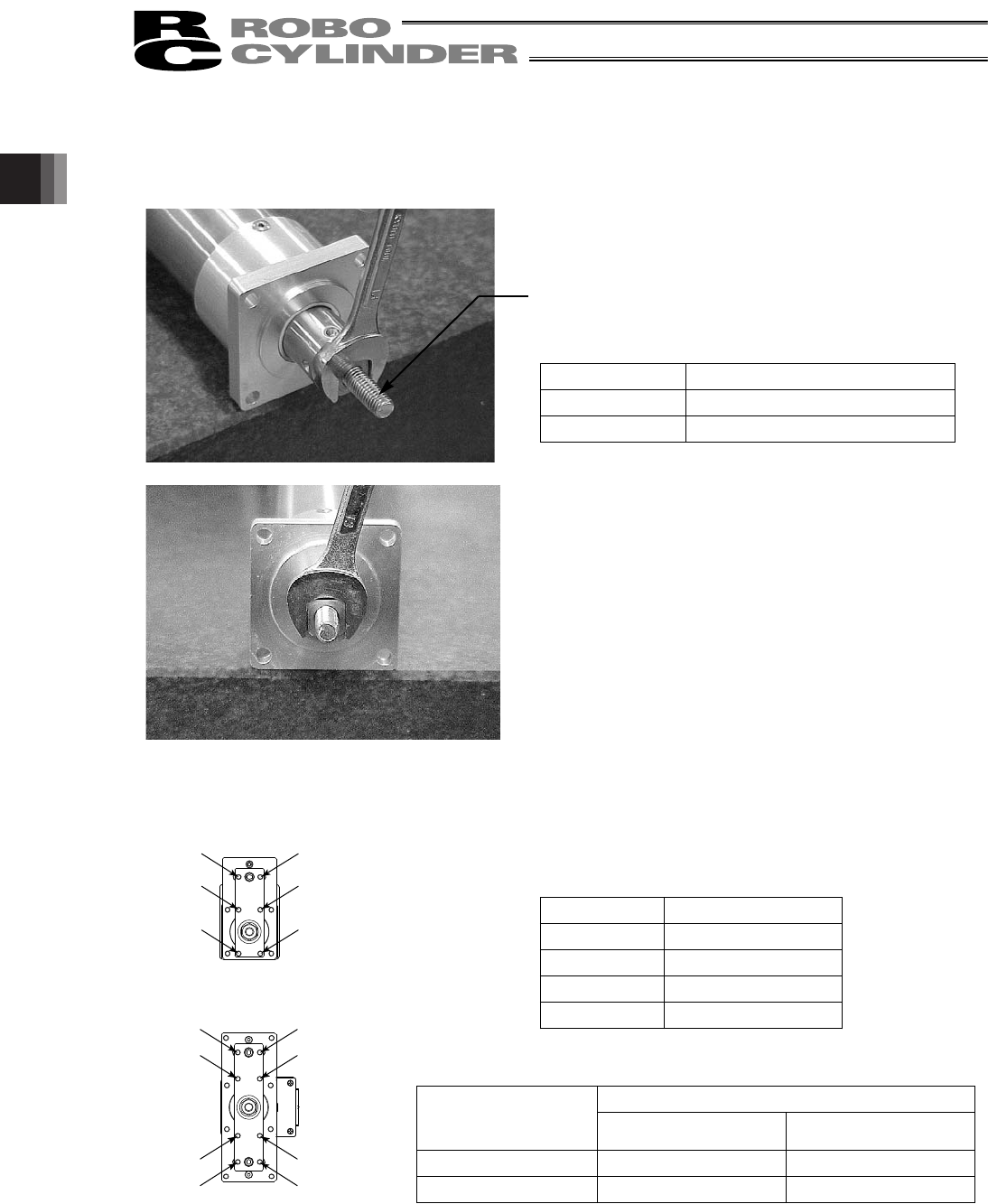

z Rod Type
A bolt is attached on the rod end bracket, so use this bolt to affix the load. (Use the supplied nut, if necessary.)
Rod end bracket
Model Ro
d end bracket
RA6C M8, length 18 mm
RA7C M10, length 21 mm
Note) Apply a spanner wrench at the rod end bracket to
prevent the rod from receiving any rotating
moment when the load is installed.
Applying excessive rotating moment to the rod
may damage the rod.
RA6C: Width across flats 13 mm
RA7C: Width across flats 17 mm
z Rod type with a guide(s)
Model Nominal thread size
RGS6C M5
RGD6C
M5
RGS7C M6
RGD7C M6
Tightening torque
Nominal thread size
Bolt bearing surface:
steel
Bolt bearing surface:
aluminum
M5 7.3 Nxm (0.74 kgfxm) 3.4 Nxm (0.35 kgfxm)
M6
12.3 Nxm (1.26 kgfxm) 5.4 Nxm (0.55 kgfxm)
Double guides
Tapped holes are provided in the guide bracket. Affix the load using
these holes (shown by the arrows in the figures at left).
Single guides
