1. Overview
13

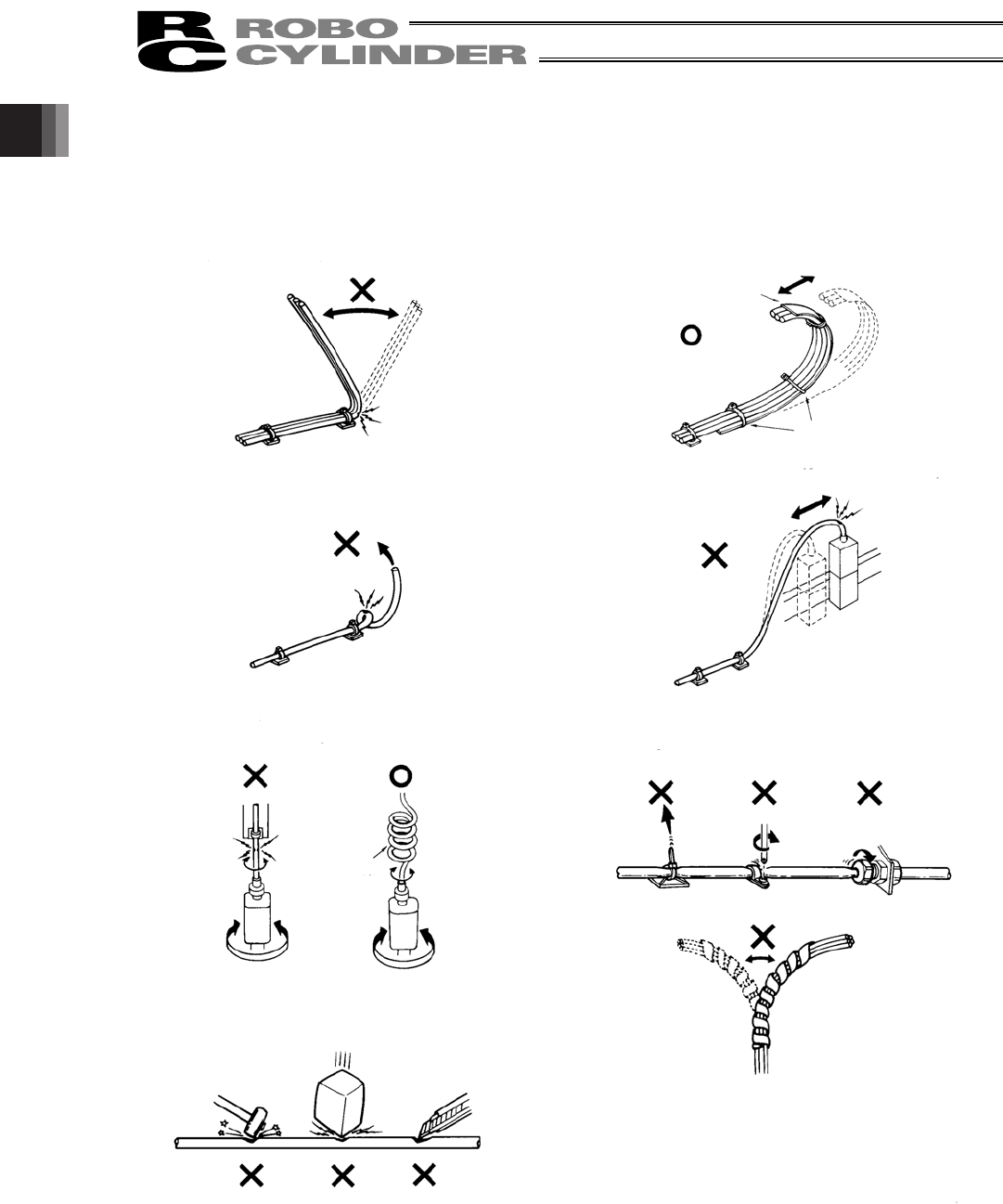

Prohibitions/Notes on Handling Cables
When designing an application system using this actuator, incorrect wiring or connection of each cable may cause
unexpected problems such as a disconnected cable or poor contact, or even a runaway system. This section explains
prohibited handling of cables. Read the information carefully to connect the cables properly.
1. Do not let the cable flex at a single point.
2. Do not let the cable bend, kink or twist. 3. Do not pull the cable with a strong force.
4. Do not let the cable receive a turning force at a single
point.
6.
Do not pinch, drop a heavy object onto or cut the
cable.
5. When fixing the cable, provide a moderate slack and
do not tension it too tight.
Steel band
(piano wire)
Bundle loosely.
Use a curly
cable.
Do not use a spiral tube where
the cable flexes frequently.
