www.tuv.com 1.6 User Manual i.Tech Clip IIe (BC03 Audio Version) User Guide Version 1 1-Nov-2005 Test Report No.

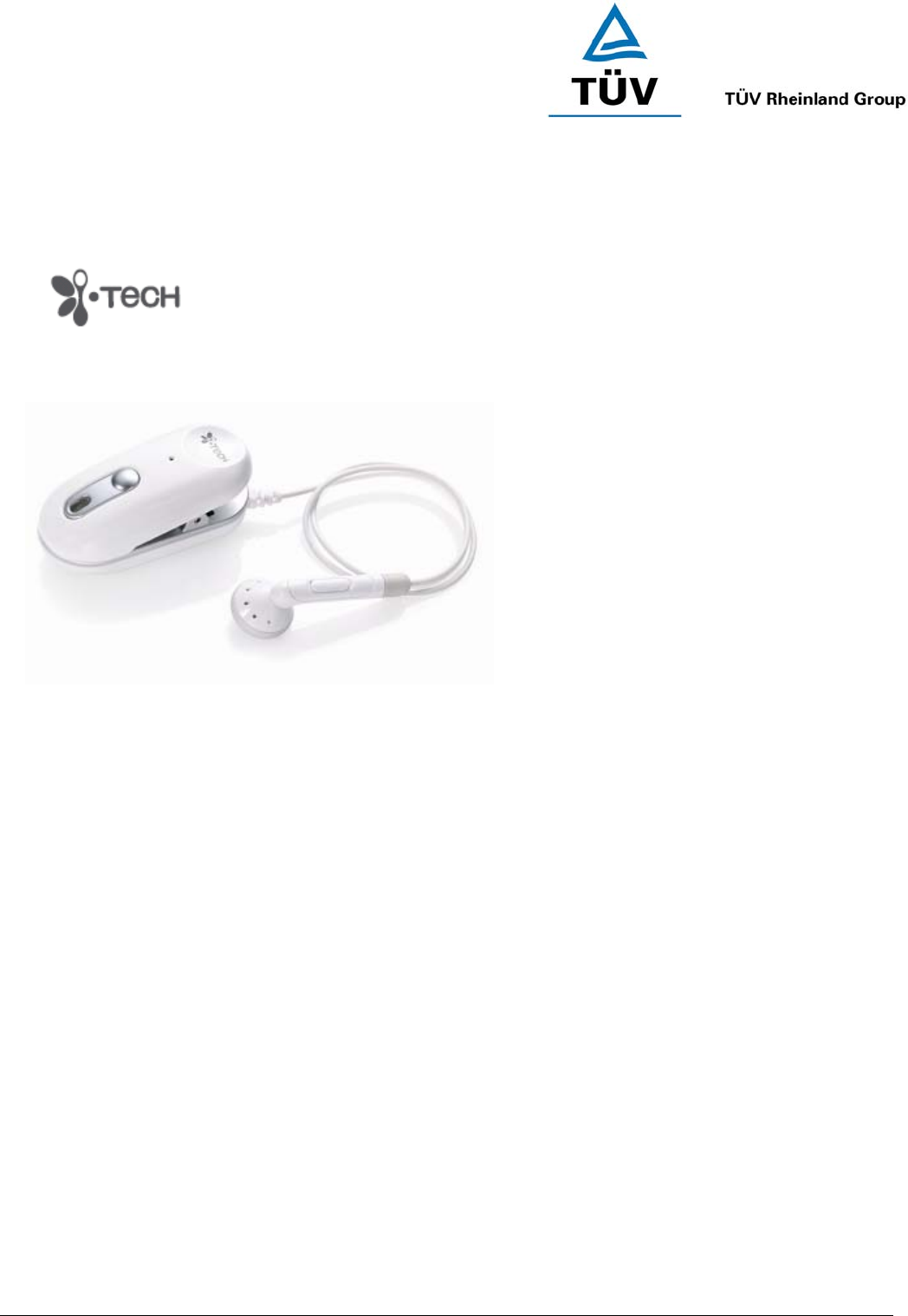

www.tuv.com i.Tech Clip IIe Bluetooth Buzzer Headset gives you more freedom when moving around. With your Bluetoothenabled mobile phone, the headset makes it easy for you to carry on with your tasks while making a call. i.Tech Clip IIe is compliant with Bluetooth Version 1.2 Class 2 specifications, and is compatible with mobile phone supporting Bluetooth Headset or Handsfree Profiles. Test Report No.
www.tuv.com (Page 0) Contents Title Basic Features of i.
www.tuv.com (Page 1) Basic Features of i.Tech Clip IIe Headset 1 2 3 4 7 5 6 8 Figure 1 1 2 3 4 5 6 7 8 Built-in Microphone Volume Button LED Indicator Built-in Buzzer Built-in Rechargeable Battery Charging Socket Multi-function Button (MFB) Earpiece Test Report No.
www.tuv.com Getting Started (Page 2) To use your i.Tech Clip IIe Headset (“the headset”), please start with the following steps below: 1. Charge your headset, and 2. Pair your headset with a Bluetooth-enabled mobile phone. Figure 2 Test Report No.
www.tuv.com (Page 3) Charging Your Headset Figure 3 The headset comes with a built-in rechargeable battery. Prior to using the headset for the first time, it is recommended to fully charge the battery first. Test Report No.
www.tuv.com (Page 4) Insert the charger plug into the headset’s charging socket (refer to Figure 3) and plug the charger to an AC wall outlet. The LED indicator will stay red during charging. IMPORTANT: Charging indication will be delayed for a few seconds if the headset has not been used for a long time or the battery is drained. Normal Charging Time It takes about three hours to fully charge the battery. When the battery is fully charged, the LED indicator will turn blue and remain on.
www.tuv.com (Page 5) Turning Your Headset On and Off Turning On the Headset Press and hold the MFB for two seconds until you hear a short beep. The LED indicator will then flash blue. IMPORTANT: Press the MFB again each time when you want to turn on the headset to re-activate pairing so as to resume the connection between the headset and the mobile phone. For pairing, please refer to “Pairing Your Headset” on page 6-7.
www.tuv.com (Page 6) Pairing Your Headset Figure 3 The headset works with Bluetooth-enabled mobile phones only. Prior to using and pairing your headset for the first time, please check if your mobile phone is Bluetooth-enabled. The pairing instructions for a typical Bluetooth-enabled mobile phone is explained on the next page. The headset pairing procedure may vary depending on the model of your mobile phone. Please contact the manufacturer of your mobile phone or its agent for further information.
www.tuv.com (Page 7) Pairing Your Headset 1. Place the headset and the mobile phone where they are no more than one metre apart. 2. Ensure the headset is off. (The LED indicator does not flash.) 3. Press and hold the MFB until the headset’s LED indicator flashes blue and red alternately. 4. Activate your mobile phone’s Bluetooth function. Please refer to your mobile phone user guide for details. 5.
www.tuv.com (Page 8) Using Your Headset Answering a Call When there is an incoming call, you will hear the buzzer ring through the earphone. Press the MFB once to accept the call or answer the call via your mobile phone in the normal way. Rejecting a Call If you do not wish to answer an incoming call, you can stop the buzzer ringing by pressing the volume key once. The buzzer will ring again when there is another incoming call.
www.tuv.com (Page 9) Using Your Headset Voice Dialling from Your Headset If your mobile phone is equipped with the voice dialling function, simply press the MFB on your headset, and when you hear a beep say the voice tag. IMPORTANT: For voice dialling, you must record the voice tag (the person’s name) into your mobile phone first before using the voice dialling function. Please refer to your mobile phone’s user guide on how to record the voice tag.
www.tuv.com (Page 10) Adjusting the Volume Press the volume key repeatedly until you reach the desired volume level. The listening volume may be affected by the volume setting of the caller’s phone as well. Re-adjust the listening volume again when necessary. Resetting or Removing Pairing You may reset the headset to its original settings anytime. To do this you also clear all current pairing settings. 1. 2. 3. 4. 5. Ensure the headset is off.
www.tuv.com (Page 11) Care and Maintenance Headset Turn off your headset before placing it in your pocket or bag. If the MFB is accidentally depressed, your mobile phone may place an unintended call. Do not expose the headset to liquid, moisture or humidity as it is not waterproof. Do not use abrasive cleaners to clean the headset. Do not expose the headset to extremely high or low temperatures. Do not leave your headset under the hot sun for a long time.
www.tuv.com (Page 12) Built-in Battery Do not attempt to replace the headset’s battery as it is in-built and is not changeable. Charge the battery in accordance with the instructions supplied with this user guide. Use only the charger supplied by the headset’s original manufacturer to charge the battery.. Charger Use only the charger supplied by the headset’s original manufacturer to charge the headset. Other chargers may look the same, but they could be dangerous.
www.tuv.com (Page 13) Safety Information Check and observe local laws regarding the use of a mobile phone and headset while driving. If you use the headset while driving, ensure your full attention and focus. It is your responsibility to drive safely. Consider to pull off the road before making or answering a call. Never leave your headset above any air bag deployment area inside your car as serious injury may result when an air bag deploys.
