HS2T2ZZV

2 Temp, 2 Zone Panel

SKU: 6651220

Zoning By Zone Valves Zone Panel- Integrator Panel Required*

PAGE 1
SKU: 6651220 HS2T2ZZV 2 Temp, 2 Zone Panel Zoning By Zone Valves Zone Panel- Integrator Panel Required*
PAGE 2

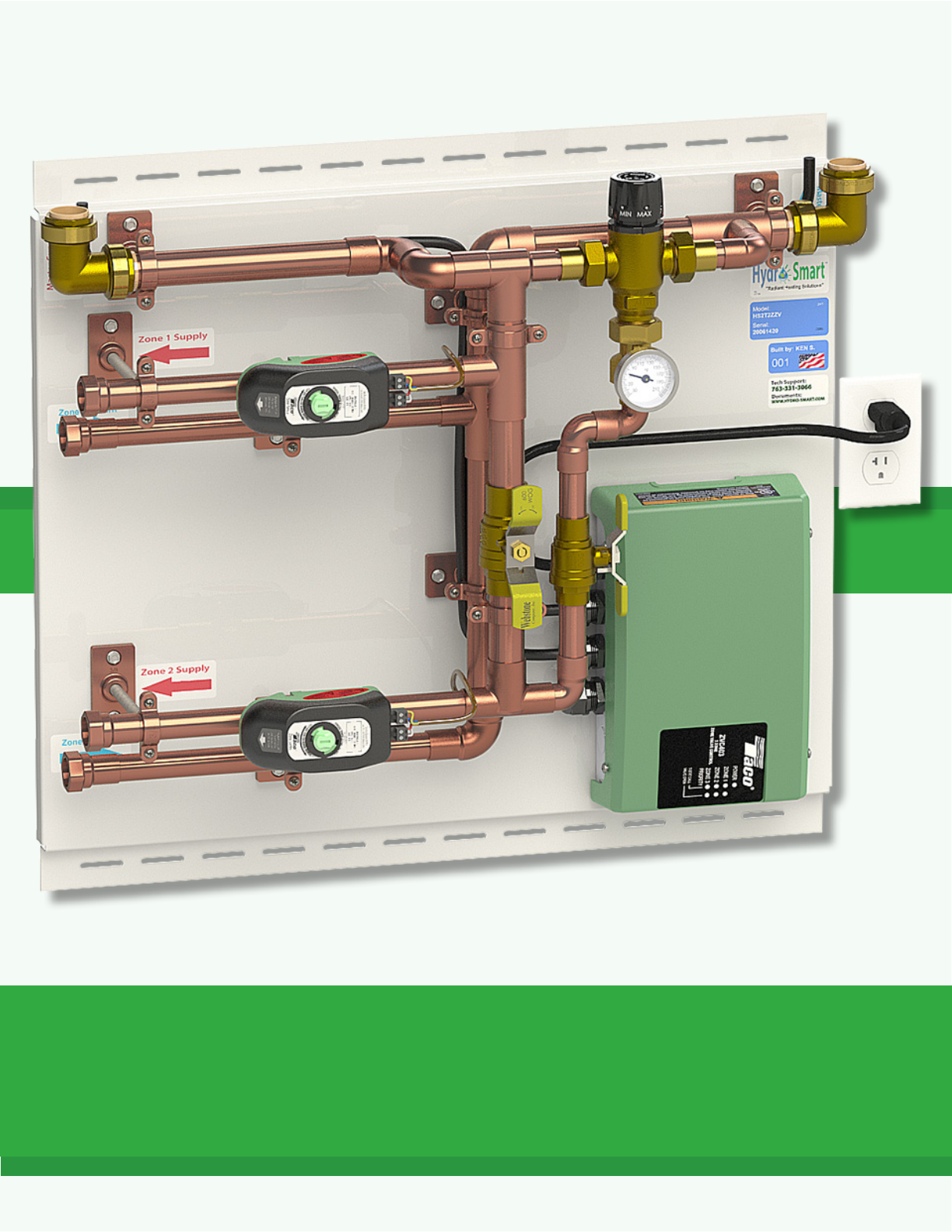

The HS2T2ZZV is a 2 Water Delivery Temperature, 2 Zone by Zone Valves Zone Panel. This panel can be used with The HSPS120MZH, HSPS190MZH, HSPS150MZH-HTP, or the HSBP6W-HS115-MZH integrator panels. This panel is desinged to be used when you have two different emitter types that reqire two different water deliver temperatures. For example, tubing in concrete should never go above 130° while baseboard usually requires 145°-160°. If you had both of these emitters, you would need a 2 Temp Panel.
PAGE 3
24.00” 26.25” 10.
PAGE 4
E A H J G I B F L This system view features the HSPS120MPH multi zone integrator panel (Zoning By Zone Valves), HS2T2ZZV Zone Panel, HS199CON gas boiler and a 3POS manifold. Your system may have a different boiler and number of loops from what is shown. This is to illustrate what a typical system would look like when completed.
