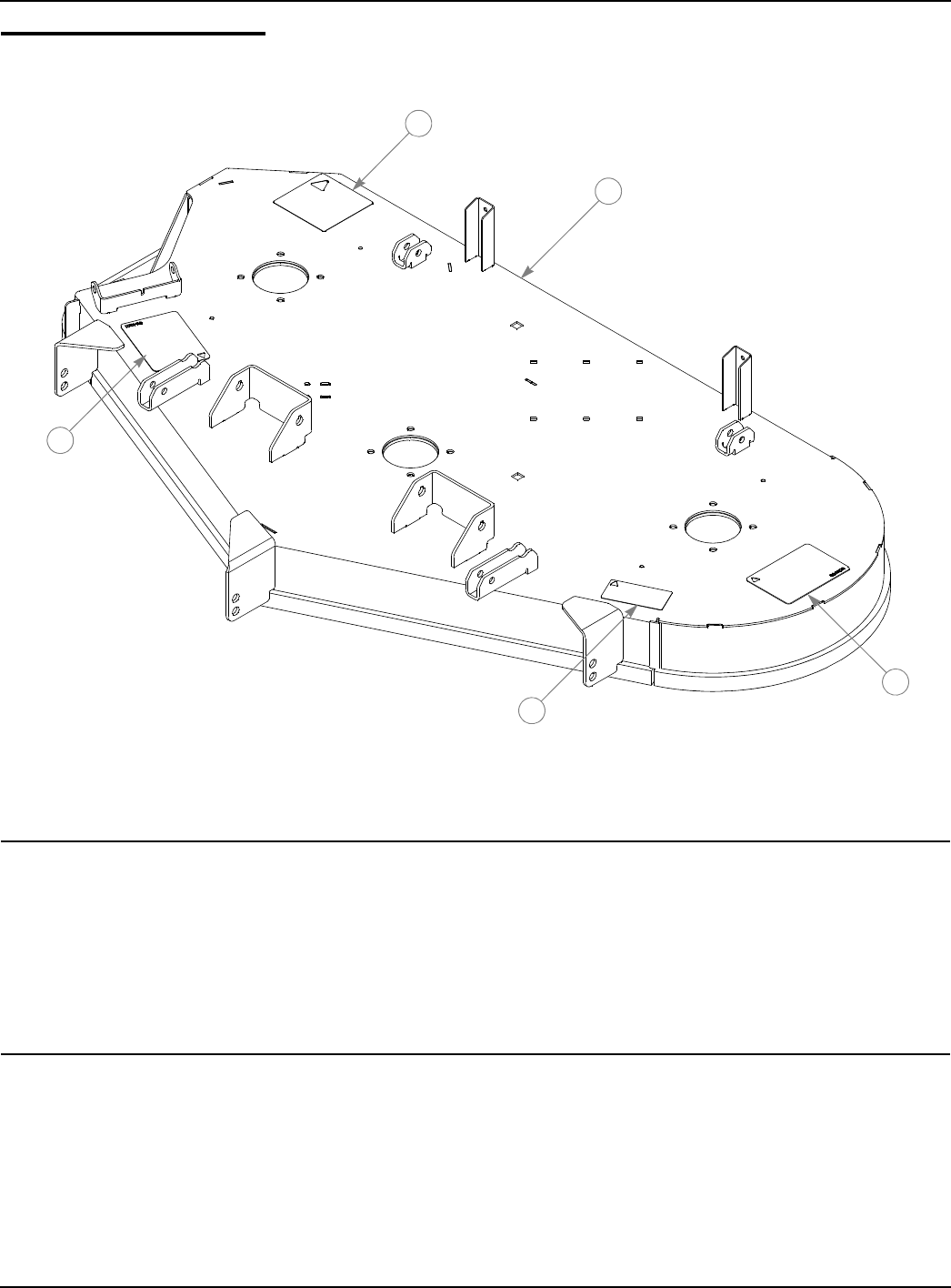

54" Service Deck
NOTES:
INDEX NO.
PA
R
T
N
O
.
QT
Y
.
DESCRIPTION
1
552268
1
54" DECK (WITH DECALS)
2
781419
1
BEL
T
ROUTING DECAL
3
604221
1
DANGER/CHUTE DE
CAL
4
799171
1
54" DECK DECAL
5
604222
1
DANGER/OBJECTS DECAL
