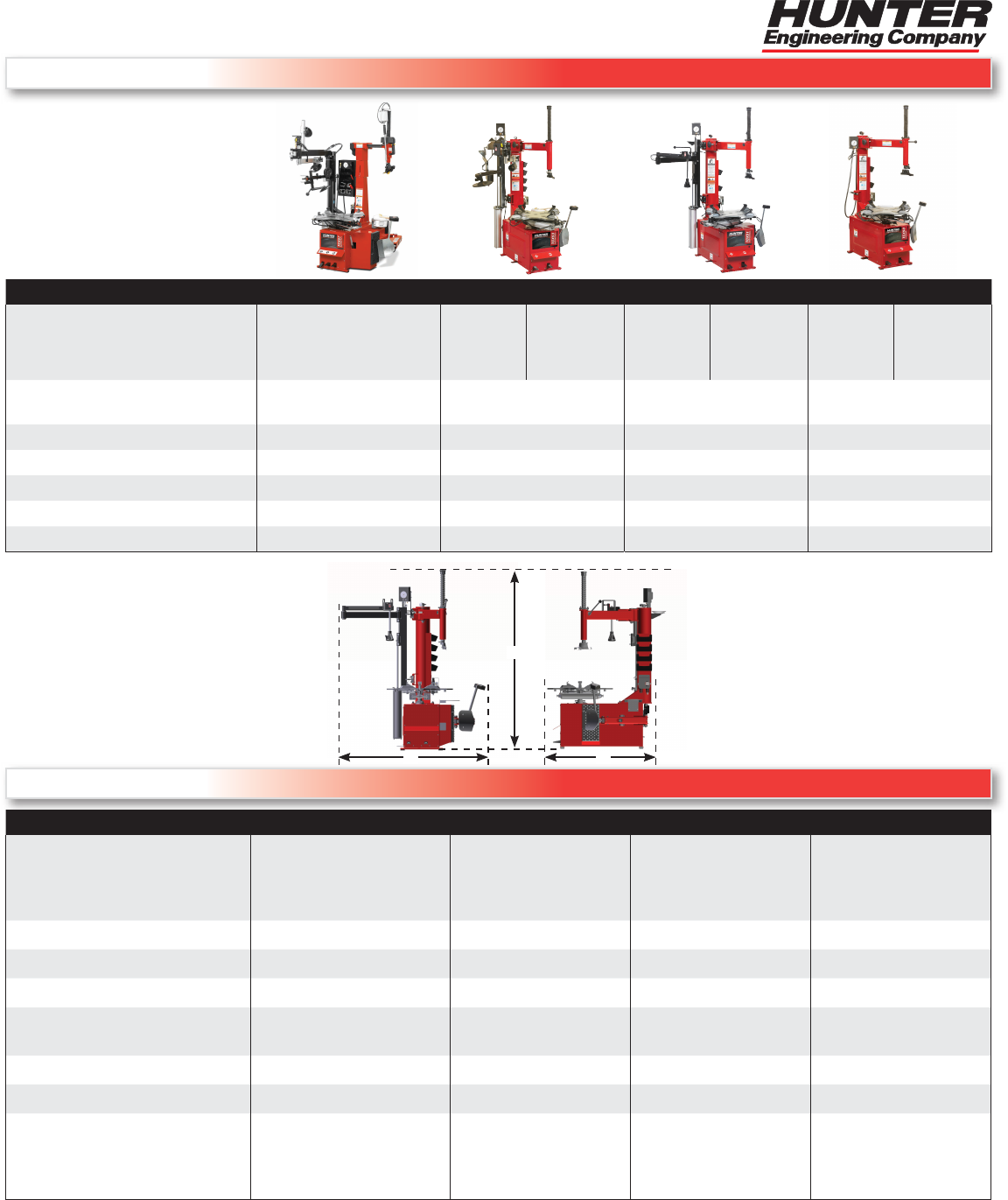

Specification Sheet
TCX Series
Tire Changers
Form 6736-T, 04-15
Supersedes Form 6736-T, 10-13
Copyright © 2013-2015, Hunter Engineering Company
Because of continuing technological advancements, specications,
models and options are subject to change without notice.
* Add 14 in. to depth for wheel lift
For tire changer information visit:
www.hunter.com/tire-changers
For general inquiries visit:
www.hunter.com or call 800-448-6848
TCX57 & TCX56 TCX53 TCX51 TCX50
Power Requirements
Electric Motor
208–230V, 6A, 60Hz,
1 ph
NEMA L6-20P
110V, 14A,
60Hz, 1ph,
NEMA
5-15P
220V, 10A,
60Hz, 1ph,
NEMA
L6-20P
110V, 14A,
60Hz, 1ph,
NEMA
5-15P
220V, 10A,
60Hz, 1ph,
NEMA
L6-20P
110V, 14A,
60Hz, 1ph,
NEMA
5-15P
220V, 10A,
60Hz, 1ph,
NEMA
L6-20P
Air Supply Requirements 110–145 psi (8–10 bar)
110–145 psi (8–10 bar)
Air Motor–14 CFM
110–145 psi (8–10 bar)
Air Motor–14 CFM
110–145 psi (8–10 bar)
Air Motor–14 CFM
Shipping Weight 1,056 lbs (479 kg) 850 lbs (386 kg) 810 lbs (367 kg) 680 lbs (308 kg)
Shipping Weight w/Wheel Lift
1,137 lbs (516 kg)
936 lbs (425 kg) 896 lbs (406 kg) 766 lbs (347 kg)
Width (W)
55" (1,397 mm)
52" (1,626mm) 52" (1,626 mm) 34" (914 mm)
Height (H)
82" (2,082 mm) 82" (2,082 mm) 82" (2,082 mm) 82" (2,082 mm)
Depth (D)
55" (1,397 mm)* 47" (1,194 mm)* 47" (1,194 mm)* 47" (1,194 mm)*
KEY SPECIFICATIONS
TCX57 & TCX56 TCX53 TCX51 TCX50
Mount / Demount Tool
Leverless Mount Head w /
protection OR
Standard Mount Head w /
protection
Leverless Mount Head
w / protection OR
Standard Mount Head
w / protection
Leverless Mount Head
w / protection OR
Standard Mount Head
w / protection
Standard Mount Head
w / protection
Clamping Type Table Top Table Top Table Top Table Top
Bead Loosening Type Side Shovel Side Shovel Side Shovel Side Shovel
Match Mounting Capable Yes No
No No
Rim Diameter Range
10–26" / 6–30"
(with standard adaptors)
10–26" External
12–28" Internal
10–26" External
12–28" Internal
10–26" External
12–28" Internal
Maximum Tire Diameter 43.3" 46"
46" 46"
Maximum Wheel Width 14.5" 14" 14" 14"
Drive
7 and 17 rpm CW
7 rpm CCW
Electric: 10 rpm CW
and CCW
Air: 10 rpm CW,
5 rpm CCW
Electric: 10 rpm CW
and CCW
Air: 10 rpm CW,
5 rpm CCW
Electric: 10 rpm CW
and CCW
Air: 10 rpm CW,
5 rpm CCW
W D
H
SITE REQUIREMENTS
