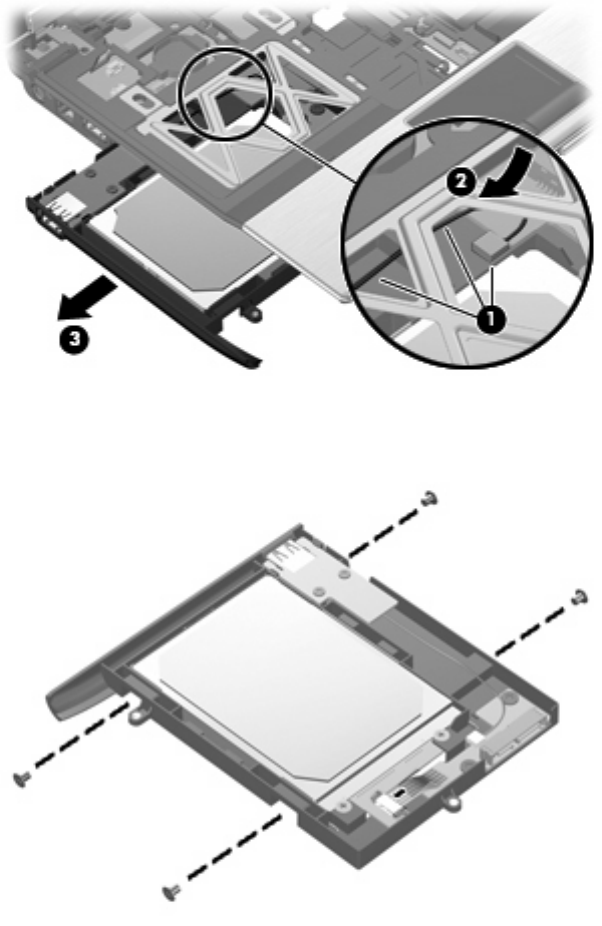

6. Remove the secondary hard drive cradle assembly (3) from the optical drive bay.
7. Remove the four Phillips PM3.0×4.0 secondary hard drive screws that secure the secondary hard
drive to the cradle assembly.
8. Tilt the hard drive up and away from the connector board (1), and disconnect the hard drive from
the connector board (2).
70 Chapter 4 Removal and replacement procedures
