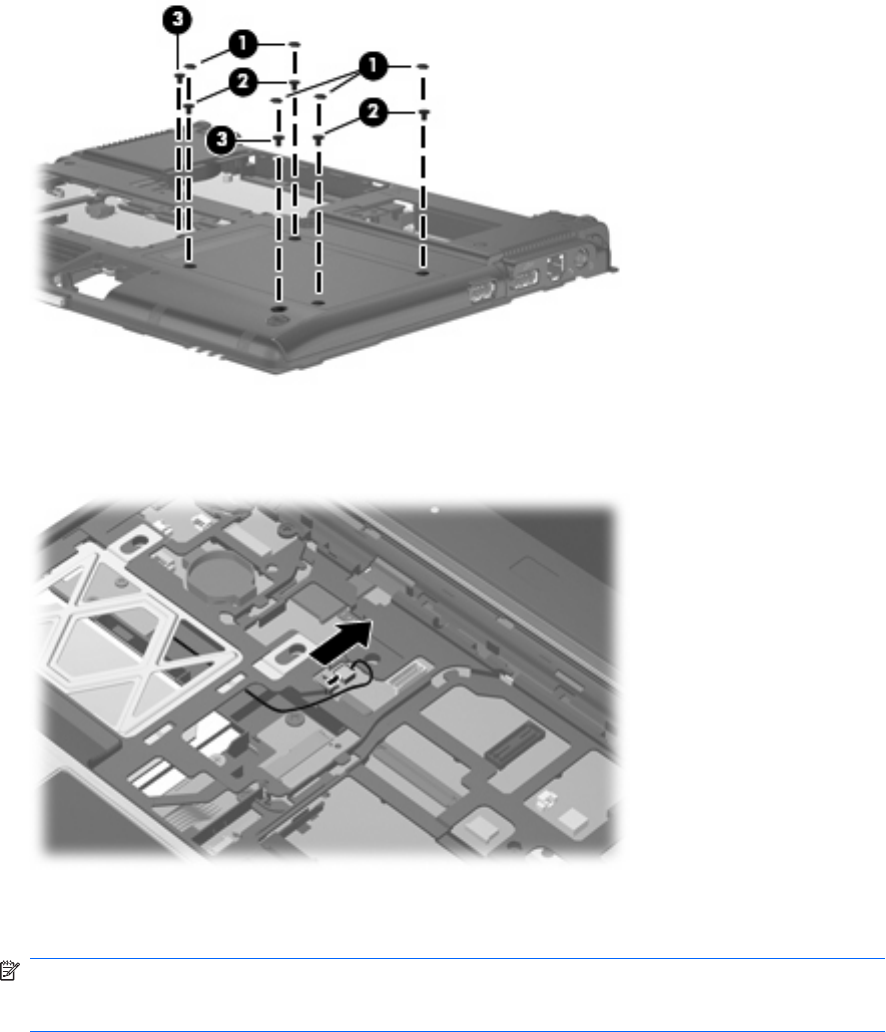

2. Remove the 5 Mylar screw covers (1), the 4 Phillips screws (2), and the 2 Phillips PM2.0×6.0
screws (3) that secure the secondary hard drive cradle assembly to the computer.
3. Turn the computer right-side up, and open the display as far as possible.
4. Disconnect the secondary hard drive cradle assembly USB cable from the system board.
5. Release the USB cable from all obstructions (1) and tuck the excess cable and connector securely
into the cradle assembly (2).
NOTE: Be sure that the USB connector and cable are completely disconnected from the system
board and secured inside the cradle assembly before you remove the cradle assembly from the
optical drive bay.
Component replacement procedures 69
