RTC battery
NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all
passwords and CMOS settings to be cleared.
Description Spare part number
RTC battery 481089-001
Before removing the RTC battery, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
Battery on page 46).
5. Release the switch cover and keyboard (see
Switch cover and keyboard on page 62).

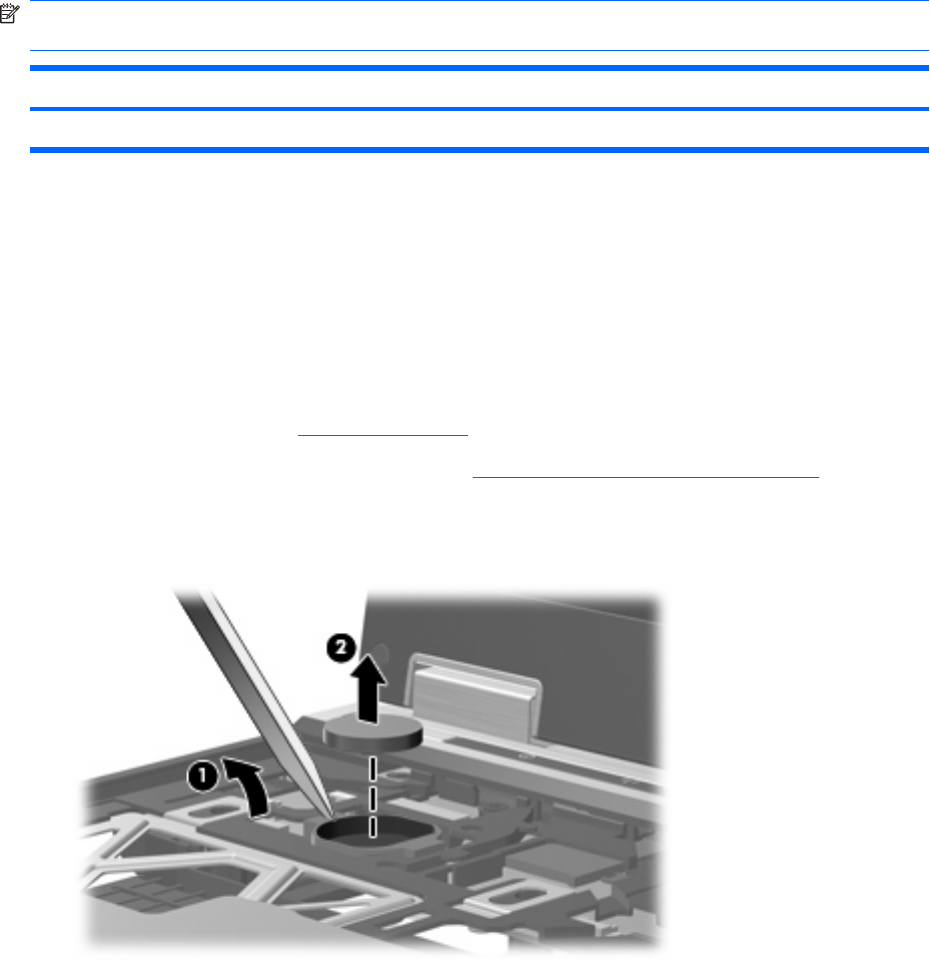

6. Use a fingernail or other tool to lift the RTC battery from the socket (1).
7. Remove the RTC battery from the socket on the system board (2).
Reverse this procedure to install the RTC battery.
