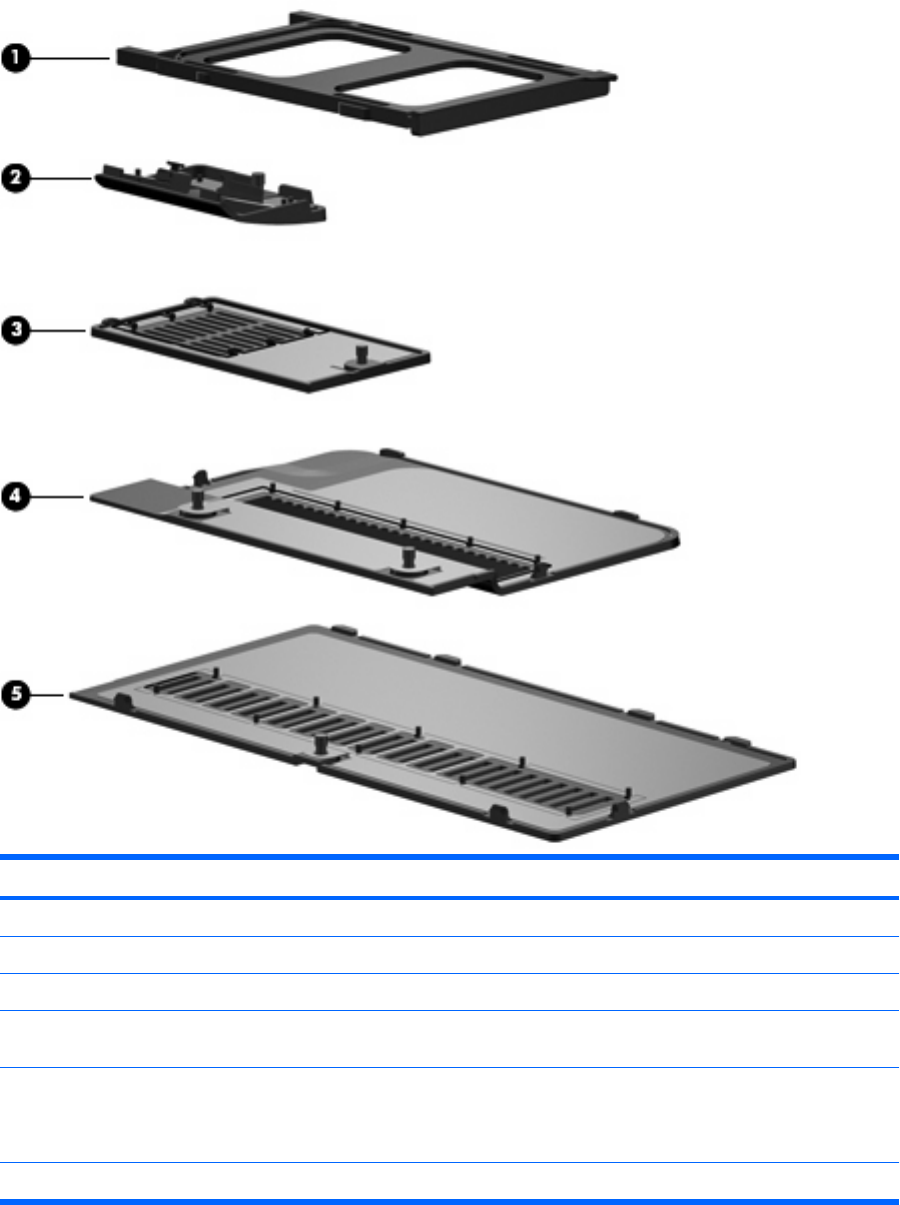

Plastics Kit
Item Description Spare part number
Plastics Kit: 492577-001
(1) ExpressCard slot insert
(2) Bluetooth module compartment cover (includes one captive screw, secured by a C-clip)
(3)
Broadband wireless module compartment cover (includes one captive screw, secured by
a C-clip)
(4) Hard drive bay cover (includes 2 captive screws, secured by C-clips)
NOTE: The 4.57-cm (1.80-inch) primary hard drive must be installed in the hard drive bay. Installation of this drive
in the optical drive bay is not supported.
(5) Memory module compartment cover, (includes one captive screw, secured by a C-clip)
Plastics Kit 31
