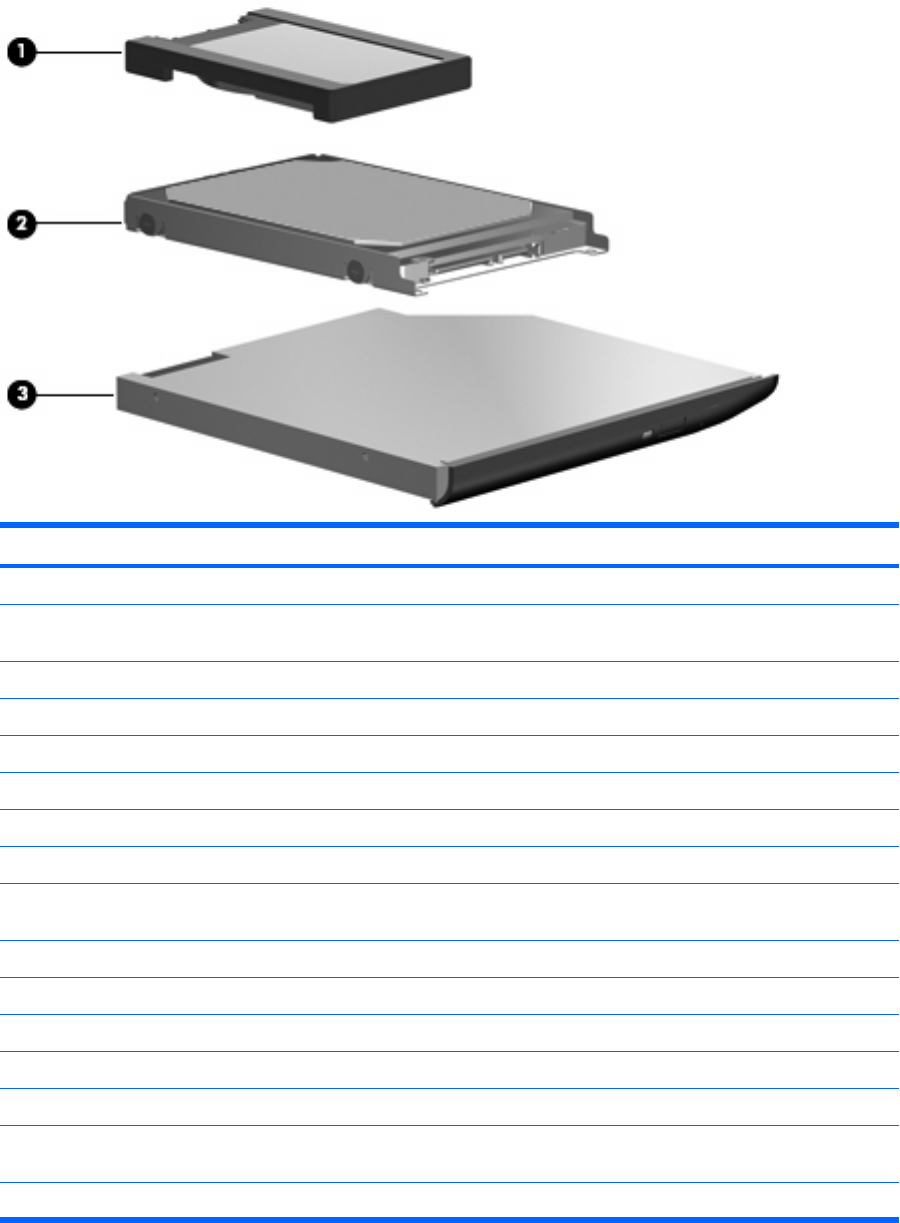

Mass storage
Item Description Spare part number
(1) Primary hard drive
NOTE: The 4.57-cm (1.80-inch) primary hard drive must be installed in the hard drive bay. Installation of this drive
in the optical drive bay is not supported.
160-GB, 5400-rpm hard drive 503732-001
120-GB, 5400-rpm hard drive 492560-001
80-GB, 5400-rpm hard drive 492565-001
80-GB, solid-state hard drive 492566-001
Primary hard drive connector board (required for installation of primary hard drive) 495026-001
(2) Secondary hard drive
NOTE: The 6.35-cm (2.50-inch) secondary hard drive must be installed in the optical drive bay. Installation of this
drive in the hard drive bay is not supported. (This option is not available when the optical drive is installed.)
320-GB, 7200-rpm hard drive 513949-001
250-GB, 5400-rpm hard drive 513948-001
160-GB, 7200-rpm hard drive 492564-001
160-GB, 5400-rpm hard drive 513950-001
120-GB, 5400-prm hard drive 492561-001
Secondary hard drive cage assembly, includes additional USB port (required for installation
of secondary hard drive
492574-001
Secondary hard drive connector board (required for installation of secondary hard drive) 495027-001
Mass storage 29
