Laptop User Manual
Table Of Contents
- Product description
- External component identification
- Illustrated parts catalog
- Removal and replacement procedures
- Preliminary replacement requirements
- Component replacement procedures
- Service tag
- Computer feet
- Battery
- SIM
- Bluetooth module
- Expansion memory module
- WLAN module
- Primary hard drive
- WWAN module
- Optical drive
- Switch cover and keyboard
- LED board
- RTC battery
- Secondary hard drive
- Primary memory module
- Display assembly
- Top cover
- Speaker
- System board
- ExpressCard assembly
- Modem module
- Fan
- Heat sink
- Computer Setup
- Specifications
- Computer specifications
- 12.1-inch, WXGA display specifications
- Hard drive specifications
- DVD-ROM Drive specifications
- DVD±RW and CD-RW SuperMulti Double-Layer Combo Drive specifications
- System DMA specifications
- System interrupt specifications
- System I/O address specifications
- System memory map specifications
- Screw listing
- Backup and recovery
- Connector pin assignments
- Power cord set requirements
- Recycling
- Index

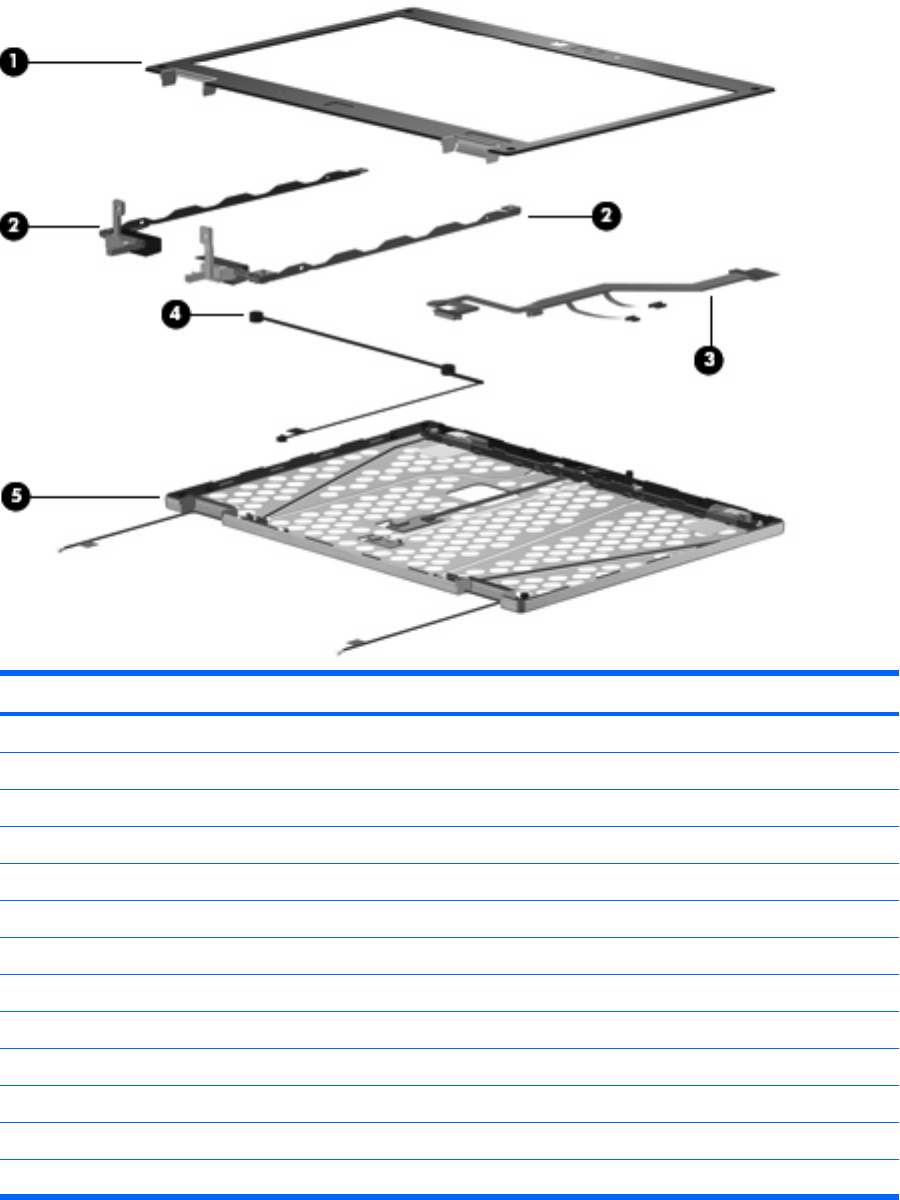

Display components
Item Description Spare part number
12.1-inch, WXGA AntiGlare display assembly (not illustrated)
With a webcam 492576-001
Without a webcam 492575-001
(1) Display bezel (includes HP logo and computer model number label)
For use with models that include a webcam 495022-001
For use with models that do not include a webcam 495019-001
Display bezel adhesive (not illustrated) 497013-001
(2) Display Hinge Kit (includes left and right hinges and brackets) 481098-001
(3) Display panel cable
For use with models that include a webcam 495023-001
For use with models that do not include a webcam 495021-001
(4) Microphone 492573-001
(5) Display enclosure (includes HP logo, wireless antenna transceivers, and cables)
Display components 27
