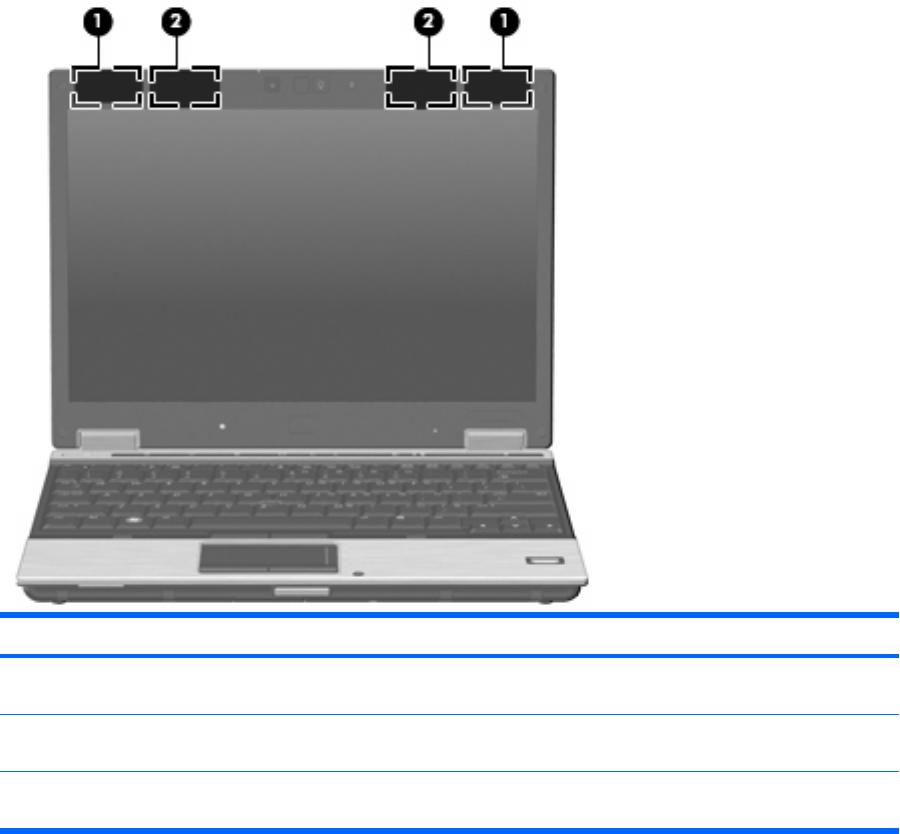

Wireless antennae (select models only)
Component Description
(1) WLAN antennae (2)* Send and receive wireless signals to communicate with wireless
local area networks (WLAN).
(2) WWAN antennae (2)* Send and receive wireless signals to communicate with wireless
wide-area networks (WWAN).
*The antennae are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around
the antennae free from obstructions.
To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental
Notices that applies to your country or region. These notices are located in Help and Support.
Wireless antennae (select models only) 19
