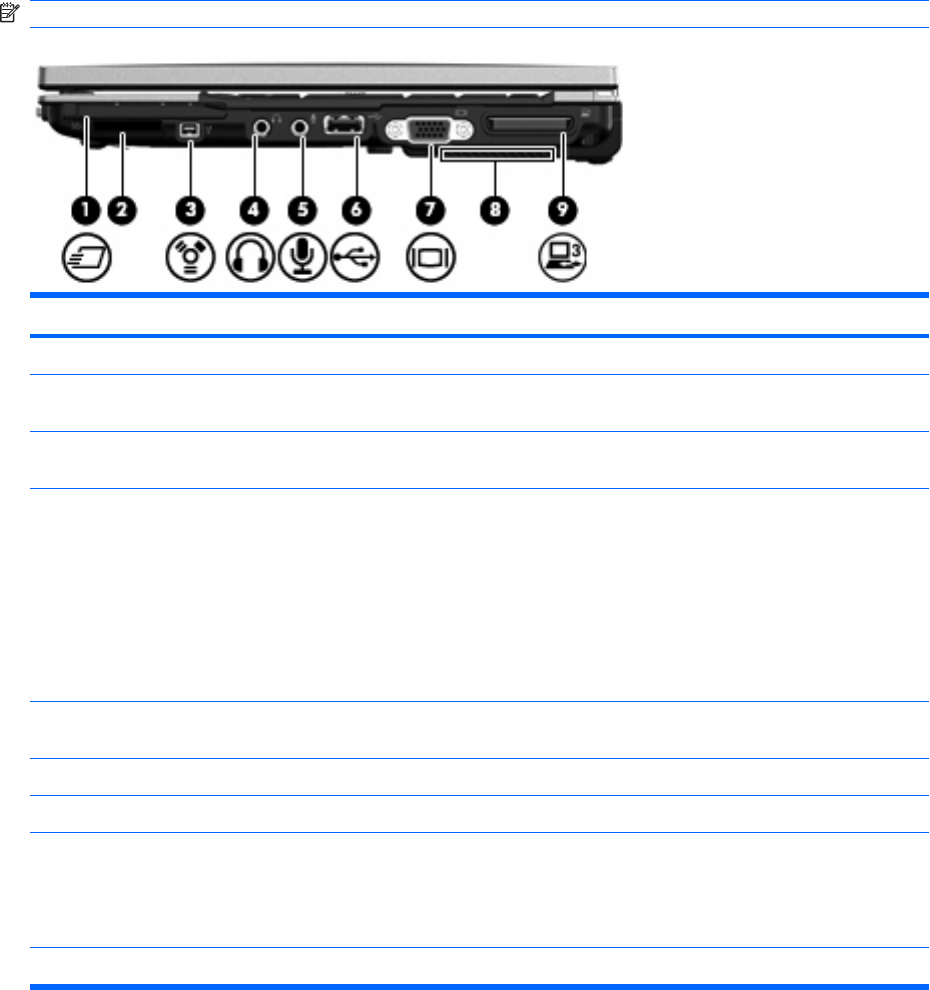

Right-side components
NOTE: Refer to the illustration that most closely matches your computer.
Component Description
(1) ExpressCard slot Supports optional ExpressCards.
(2) SD Card Reader Supports the Secure Digital (SD) Memory Card and
MultiMediaCard (MMC) optional digital card formats.
(3) 1394 port Connects an optional IEEE 1394 or 1394a device, such as a
camcorder.
(4) Audio-out (headphone) jack Produces sound when connected to optional powered stereo
speakers, headphones, ear buds, a headset, or television audio.
WARNING! To reduce the risk of personal injury, adjust the
volume before putting on headphones, earbuds, or a headset. For
additional safety information, refer to the Regulatory, Safety and
Environmental Notices.
NOTE: When a device is connected to the headphone jack, the
computer speakers are disabled.
(5) Audio-in (microphone) jack Connects an optional computer headset microphone, stereo array
microphone, or monaural microphone.
(6) USB port Connects an optional USB device.
(7) External monitor port Connects an external VGA monitor or projector.
(8) Vent Enables airflow to cool internal components.
NOTE: The computer fan starts up automatically to cool internal
components and prevent overheating. It is normal for the internal
fan to cycle on and off during routine operation.
(9) Expansion port 3 Connects an optional docking device.
