Display

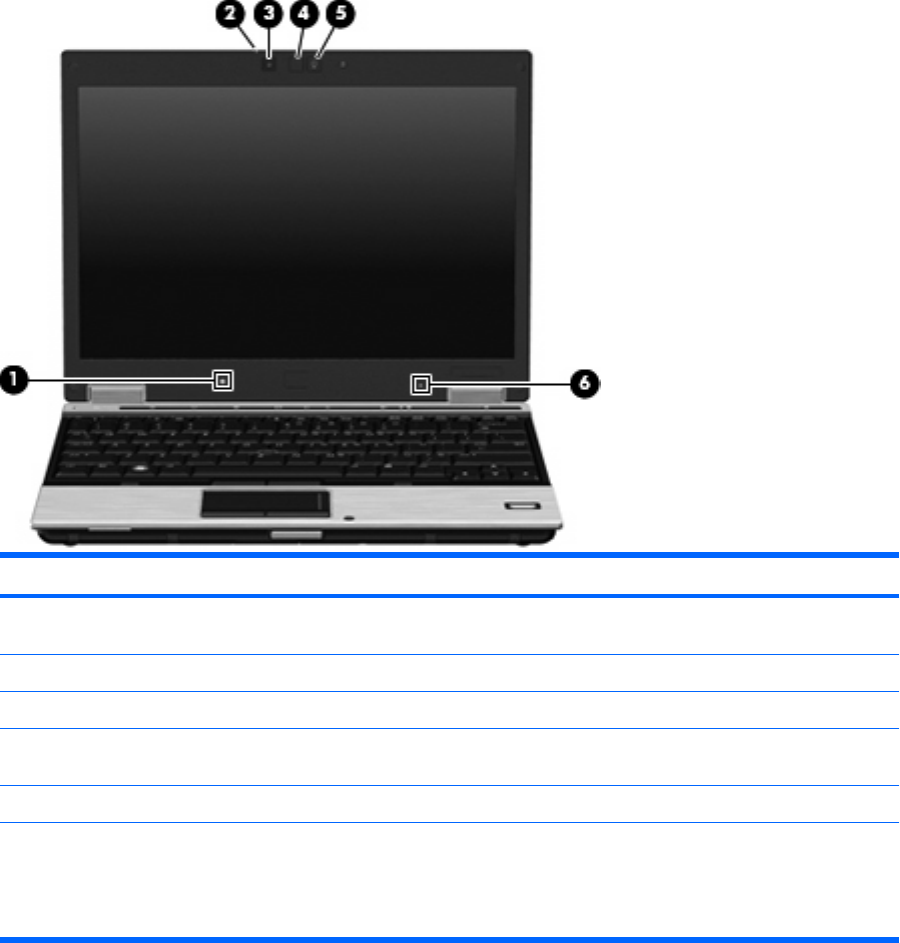

Component Description
(1) Ambient light sensor Automatically adjusts the display brightness based on the lighting
conditions in your environment.
(2) Webcam light (select models only) On: The integrated camera is in use.
(3) Webcam (select models only) Records audio and video and captures still photographs.
(4) Keyboard light Illuminates the keyboard in low-light conditions when the keyboard
light button is pressed.
(5) Keyboard light button Opens and turns on the keyboard light.
(6) Internal microphone Records sound.
NOTE: The internal microphone makes use of dual array
technology, which provides speech enhancement and suppresses
surrounding noises.
