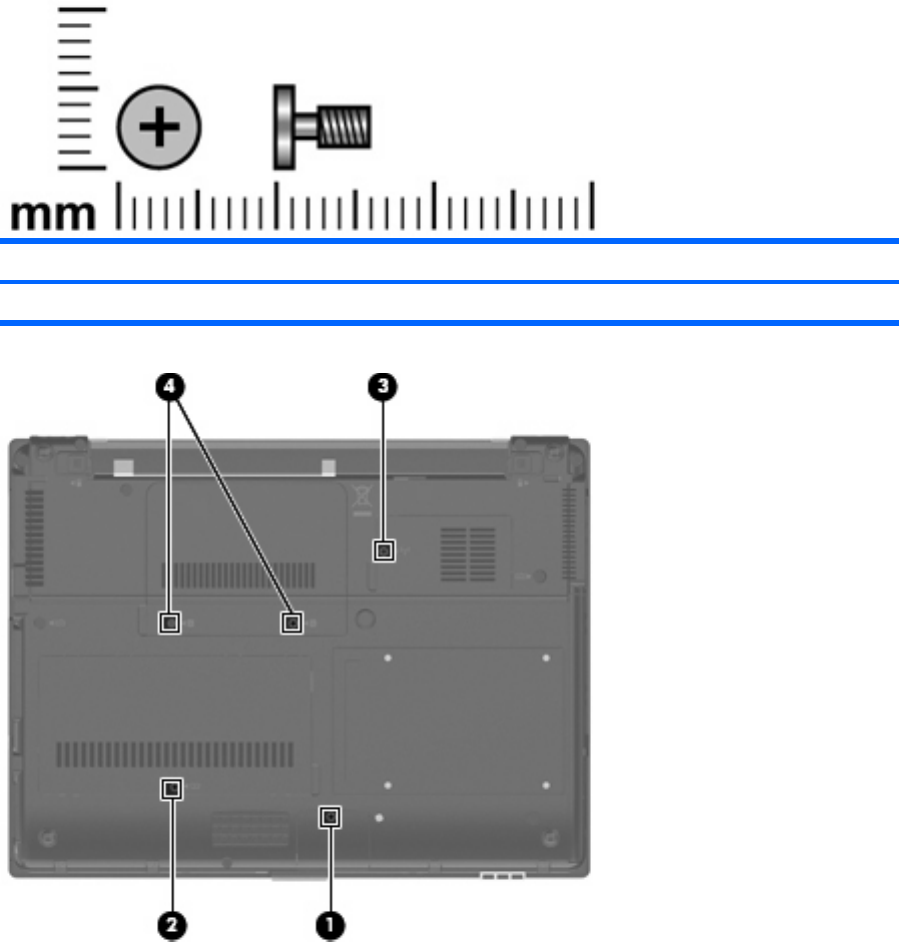

Phillips PM2.5×6.0 captive screw
Color Quantity Length Thread Head diameter
Black 5 6.0 mm 2.5 mm 5.0 mm
Where used:
(1) One captive screw that secures the Bluetooth module cover to the computer (screw is secured by
a C-clip)
(2) One captive screw that secures the memory module compartment cover to the computer (screw is
secured by a C-clip)
(3) One captive screw that secures the broadband wireless module compartment cover to the computer
(screw is secured by a C-clip)
(4) Two captive screws that secure the hard drive bay cover to the computer (screws are secured by C-
clips)
Phillips PM2.5×6.0 captive screw 123
