2 External component identification

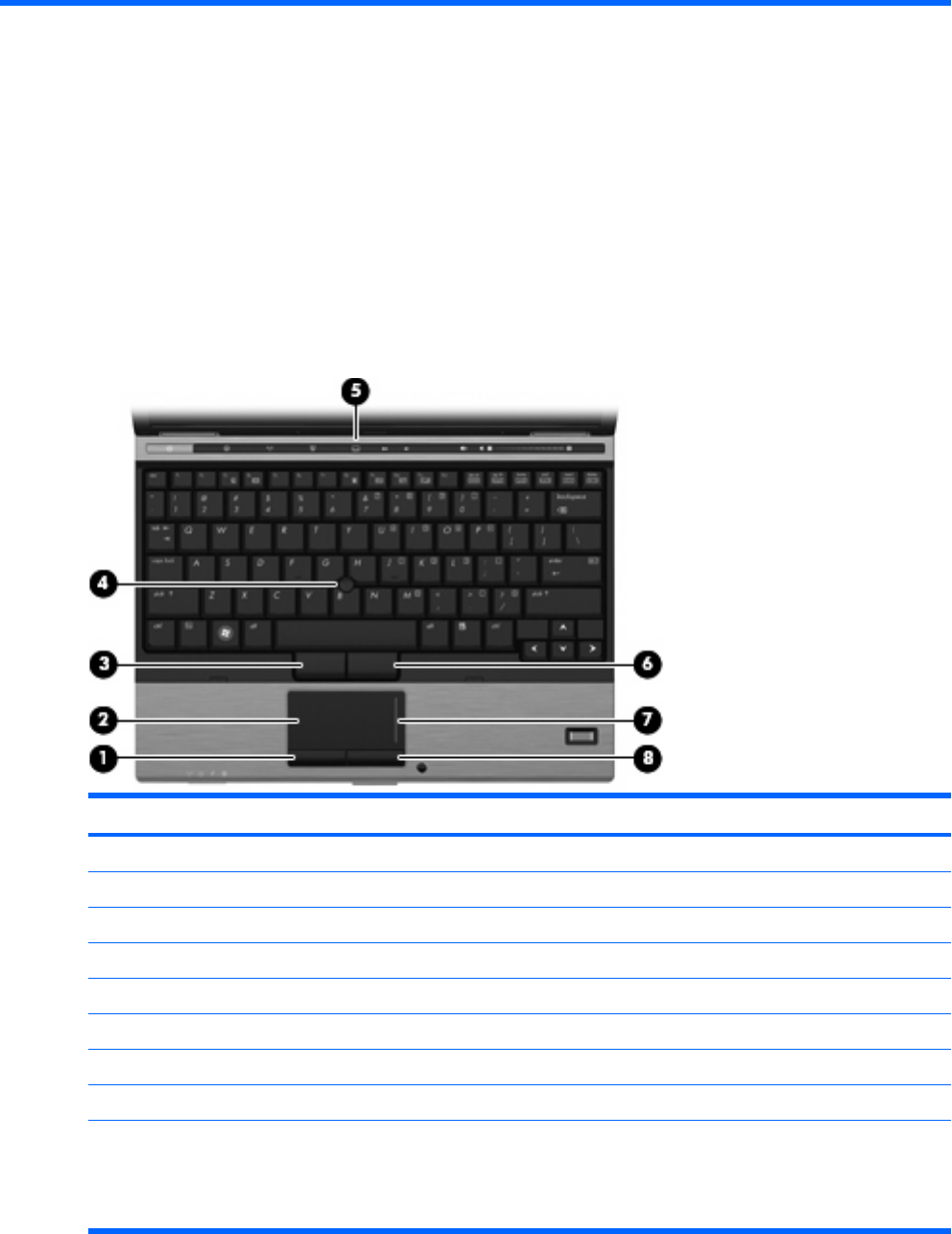

Top components
Pointing devices
Component Description
(1) Left TouchPad button* Functions like the left button on an external mouse.
(2) TouchPad* Moves the pointer and selects or activates items on the screen.
(3) Left pointing stick button* Functions like the left button on an external mouse.
(4) Pointing stick* Moves the pointer and selects or activates items on the screen.
(5) TouchPad on/off button Turns the TouchPad on and off.
(6) Right pointing stick button* Functions like the right button on an external mouse.
(7) TouchPad scroll zone Scrolls up or down.
(8) Right TouchPad button* Functions like the right button on an external mouse.
*This table describes factory settings. To view or change pointing device preferences:
●
For Windows Vista, select Start > Control Panel > Hardware and Sound > Mouse.
●
For Windows® XP, select Start > Control Panel > Printers and Other Hardware > Mouse.
Top components 5
