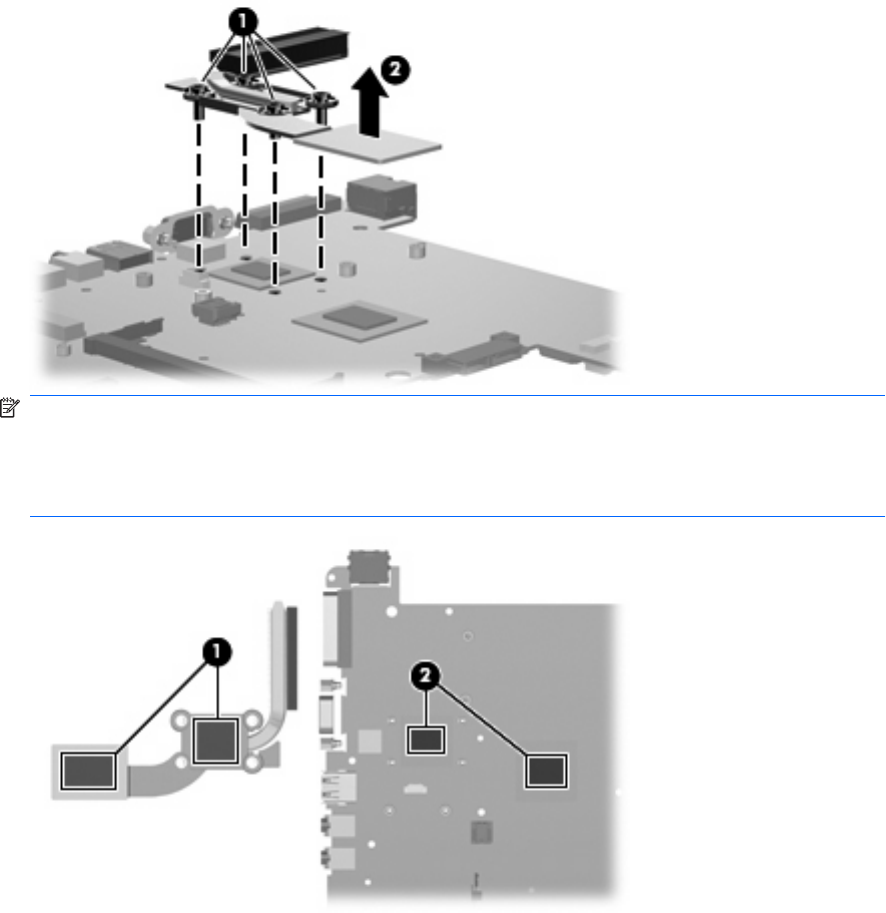

3. Remove the heat sink (2).
NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink and
system board each time the heat sink is removed. Thermal paste and pads are located on the heat
sink (1) and on system board components (2). Replacement thermal material is included with all
heat sink and system board spare part kits. Replacement thermal material is included with all heat
sink and system board spare part kits.
Reverse this procedure to install the heat sink.
