Setting Up the Monitor
User’s Guide 3–5
To connect the VGA cable
Connect one end of the VGA video cable to the back of the monitor and the other end to the VGA video connector
on the computer.
To connect the DVI-D cable
Connect one end of the DVI-D video cable to the back of the monitor and the other end to the DVI video connector on
the computer. You can use this cable only if your computer has a DVI-compliant graphic card installed. The monitor
DVI-D connector and cable are included with select models only.

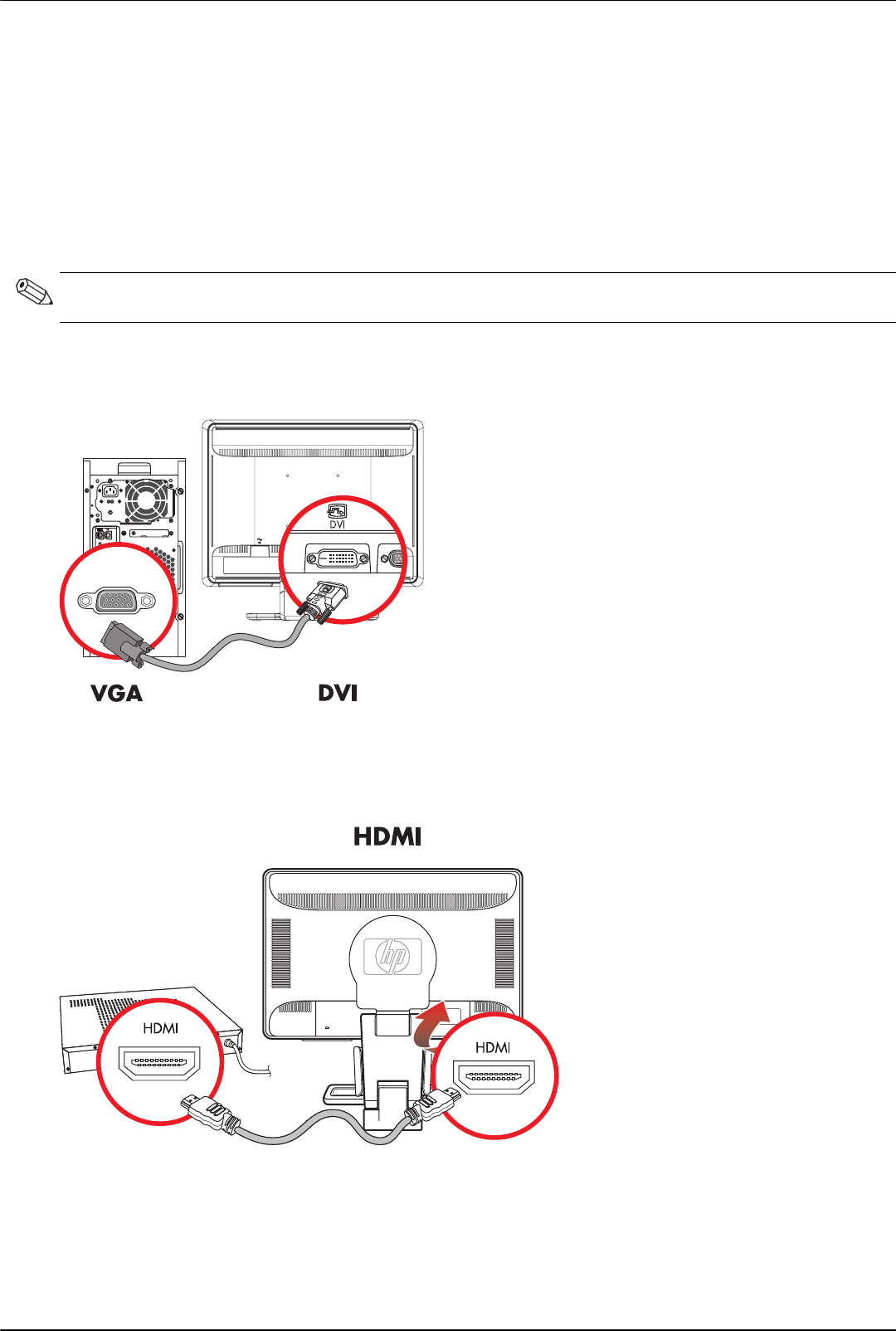

Connecting the VGA / DVI-I Cable (Select Models Only)
Connect the VGA end of the cable to the back of the computer and connect the DVI-I end of the cable to the monitor.
Connecting the HDMI Cable (Select Models Only)
Connect one end of the HDMI cable to the back of the monitor and the other end to any compatible digital
audio/video source, such as a set-top box, a DVD player, or a digital television.
NOTE: If you use a DVI-to-HDMI adapter, you must connect the green audio cable to enable the speakers. The
signal from the DVI connector is for video only.
