Setting Up the Monitor
3–4 User’s Guide
5. Save the removed items (cover, screws, and base) for future use.
6. Follow the instructions included with the mounting fixture to ensure that the monitor is safely attached.
The four-threaded mounting holes that are on the back of the panel are compliant with the VESA standard for
mounting flat-panel monitors. The monitor uses the 100 mm spacing standard.
Use the four holes to attach a swing arm or other mounting fixture.
Connecting the VGA (Analog) or DVI-D (Digital) Cable
Use a VGA video cable or a DVI-D video cable (provided with select models). To use DVI, you must have a
DVI-compliant graphic card. Connectors are located on the back of the monitor. Be sure the computer and monitor
are turned off and unplugged.
Some graphic cards have both a DVI connector and a DVI-to-VGA converter included in the box (select models only).
If the monitor has a VGA connector but no DVI connector, use the DVI-to-VGA converter to connect to the computer:
Connect the DVI-to-VGA converter to the DVI connector on the computer graphic card, and then connect the VGA
cable to the converter and the monitor.

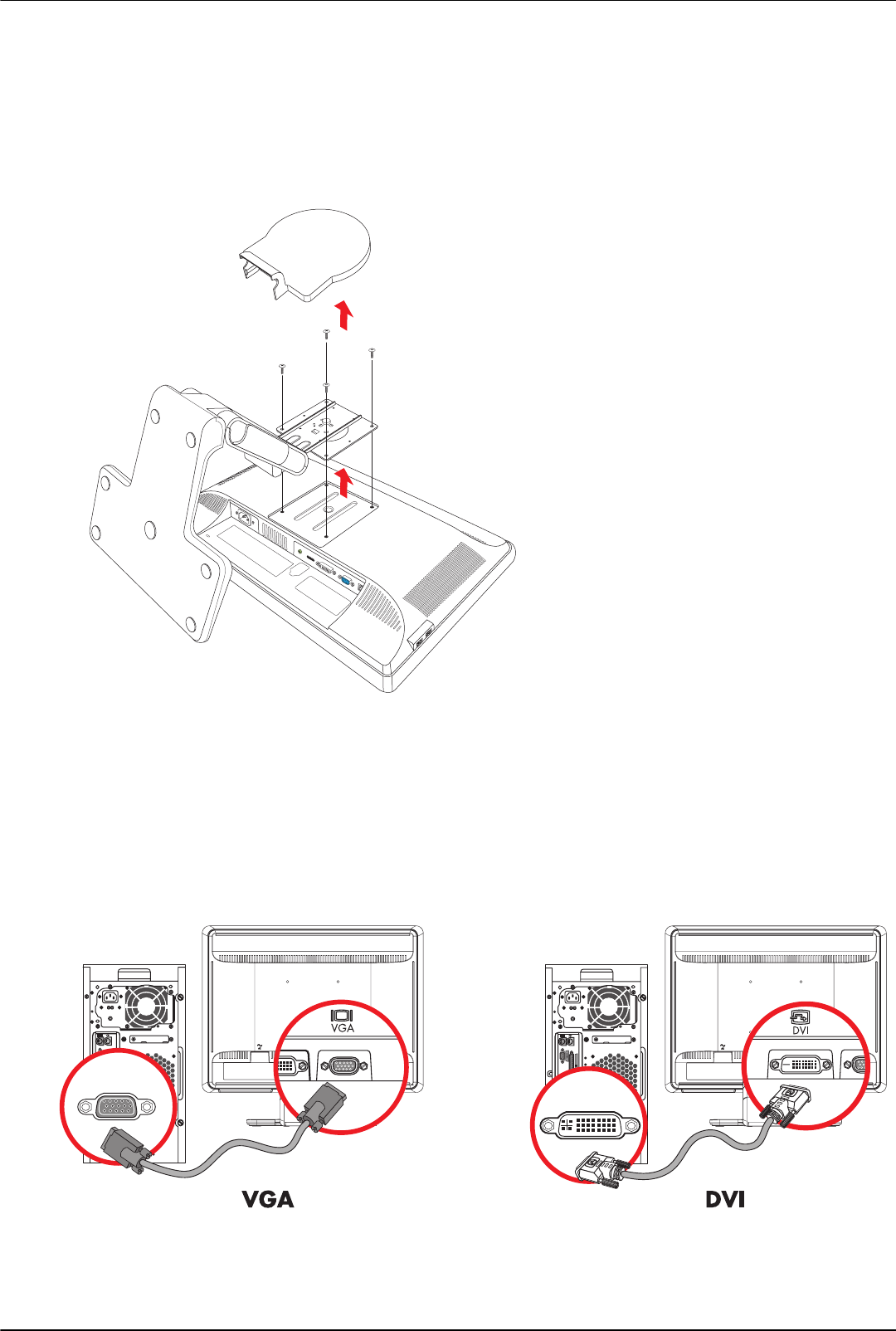

Connecting the VGA or DVI-D cable—connector locations may vary
