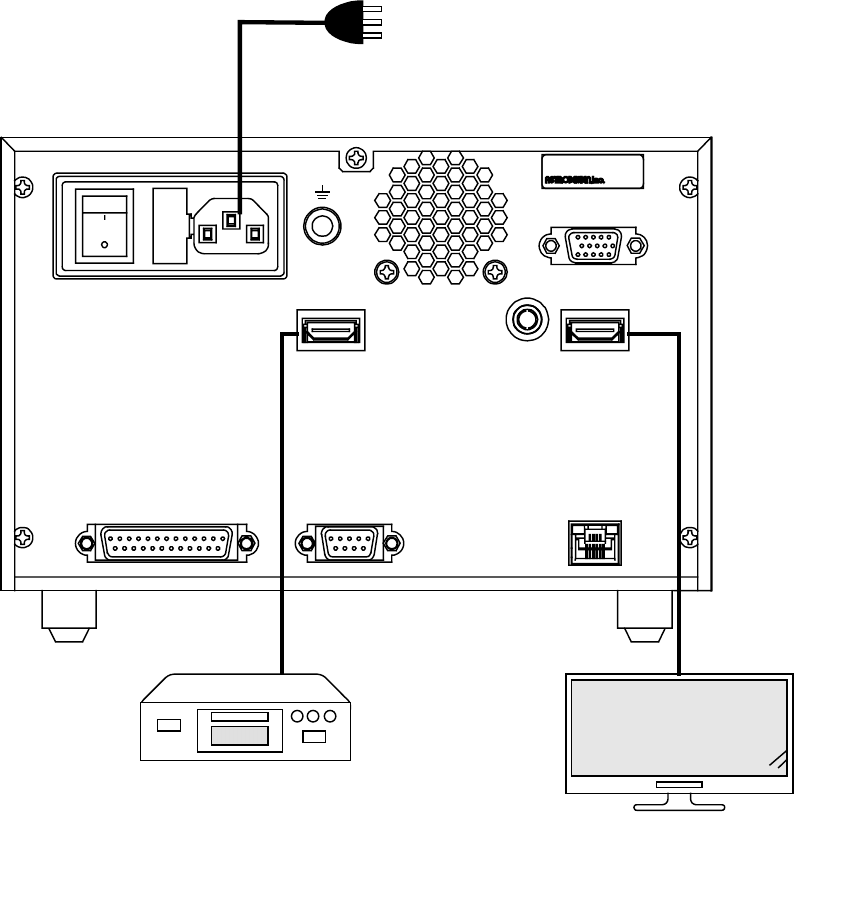

5.2 Example of connections when using the VA-1809 as a repeater
* For details on the VA-1809 settings, refer to page ???.
I/O
POWER AC IN(100-240V) T5A
RS-232C
HDMI IN
LAN
EXT MONITOR(VGA)
COAX OUT HDMI OUT
MODEL ;
SER.No ;
MAD E IN JA PAN
HDMIの入力端子を持った装置
LC D TV等
LCD TV or other unit equipped with
HDMI input connector
HDMIの出力端子を持った装置
DVDプレーヤー等
DVD player or other unit equipped with
HDMI output connector
付属電源ケーブル
Power cable supplied with VA-1809
