Data Replication manager with Compaq Tru64 UNIX Logical Storage Manager

Administering LSM
Application Notes – Data Replication Manager with HP Tru64 UNIX Logical Storage Manager 13

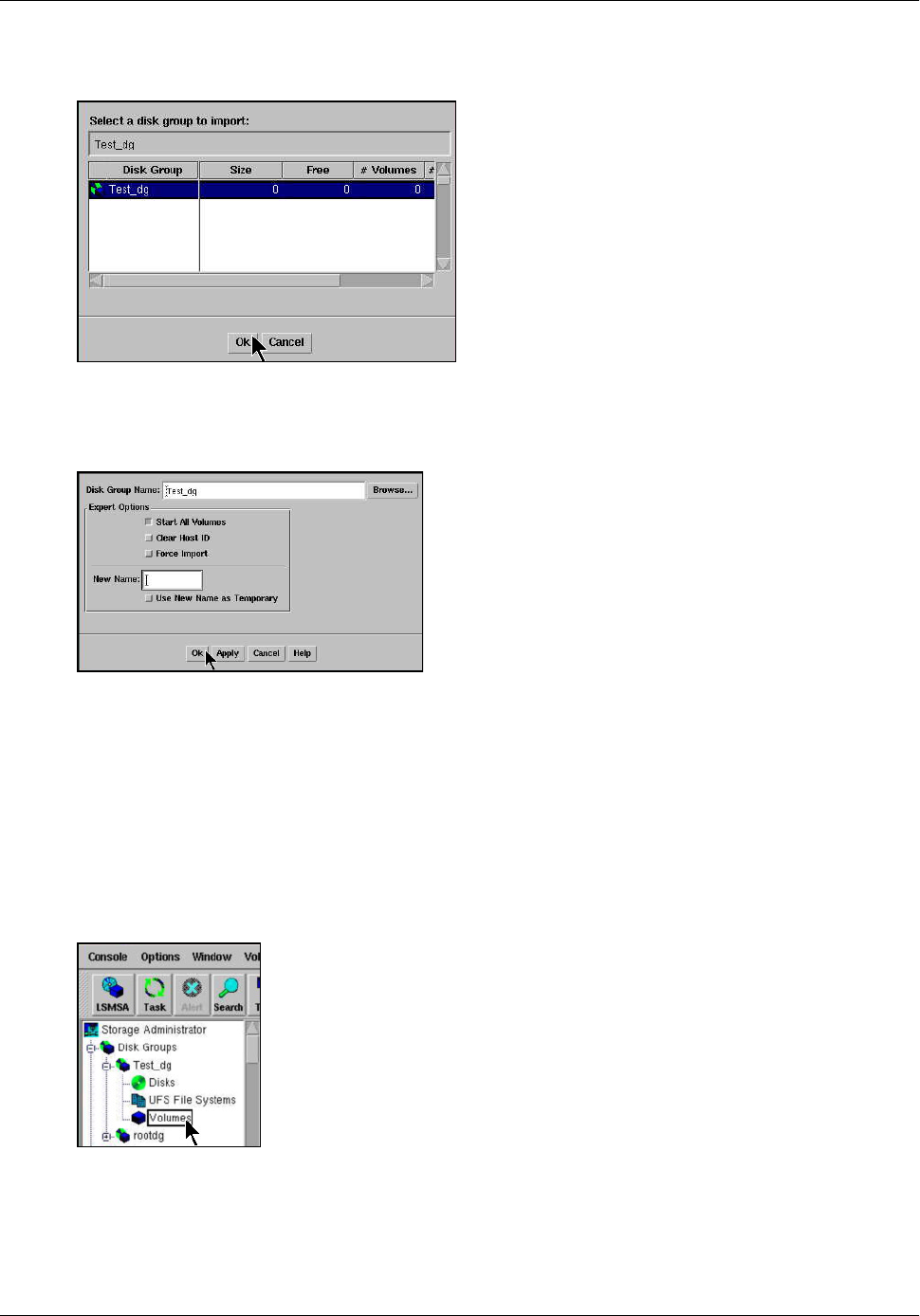

4. Select the disk group to be imported, then click OK, as shown in Figure 11.
Figure 11: Browse Disk Groups window
5. You will see a display similar to that in Figure 12.
Figure 12: Import Disk Group confirmation window
6. Click OK to import the disk group.
Mounting the Volume
After the disk group is imported, you can mount the volume:
1. In the left pane, select Volumes for the disk group that contains the volume you want to mount, as
shown in Figure 13.
Figure 13: Volume selection
