Chapter 9 Remove/Replace Procedures
92

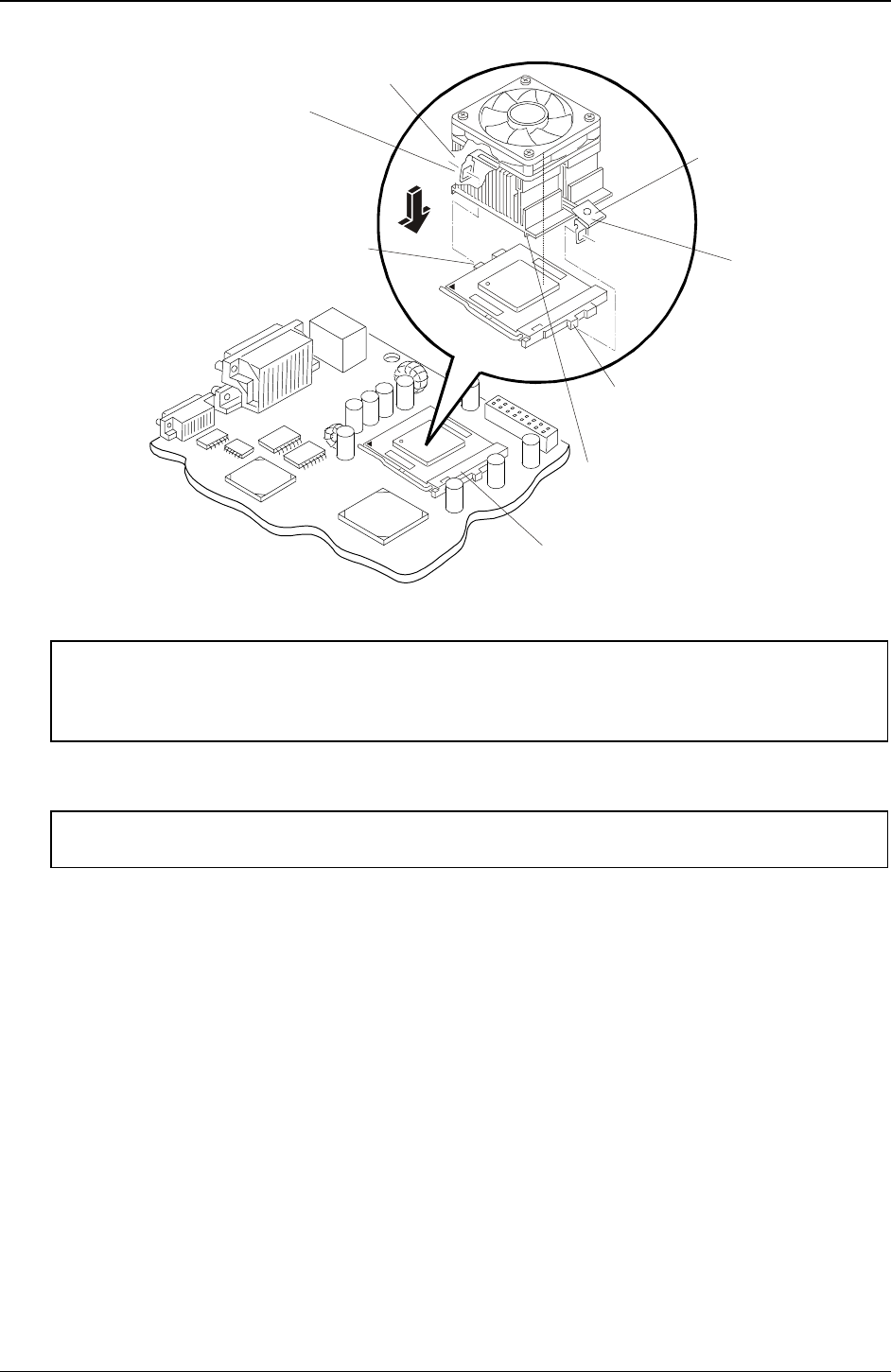

Hook Latch
(hidden)
Thumb
Latch
Step B
Tab
Tab
Step A
Processor
Socket
Base
Step C
Replacing Heatsink-Cooling Fan on the Processor
CAUTION Ensure you have made good contact with the processor to avoid thermal overheating. If
you have not made good contact with the processor, it will overheat within 20 seconds of
power on, possibly causing a system crash before completing the boot process and
causing damage to the processor.
6. Connect the cooling fan power cable to the fan connector on the system board.
CAUTION Failure to connect the cooling fan to its power connector may cause the Server to shut
down with no messages displayed and possibly damage the processor.
7. Replace the left side cover.
8. Replace the external cables and power cord.
9. Power on the Server as described in Chapter 2, “Controls, Ports, and Indicators.”
You may have to reboot the Server so the BIOS will recognize the new processor.
