Chapter 1 Specifications
9
System Board Layout
DIMM Slots
FDD
IDE-2
IDE-1
Front
Panel
Display
Header
CMOS
Clear Jumper
Battery
Connector
Chassis Fan
Video (L)
Com 1 (L)
Com 2
Parallel (U)
Mouse (U)
Keyboard (L)
2 USB (L)
LAN (U)
Connector
Heatsink Fan
Power
Processor,
Heatsink
& Fan
1
2
PCI Slot P5
3
PCI Slot P4
PCI Slot P3
PCI Slot P2
PCI Slot P1
Beep Code
Speaker
Pin 1
Pin 3
SCSI
Controller
LED
Headers

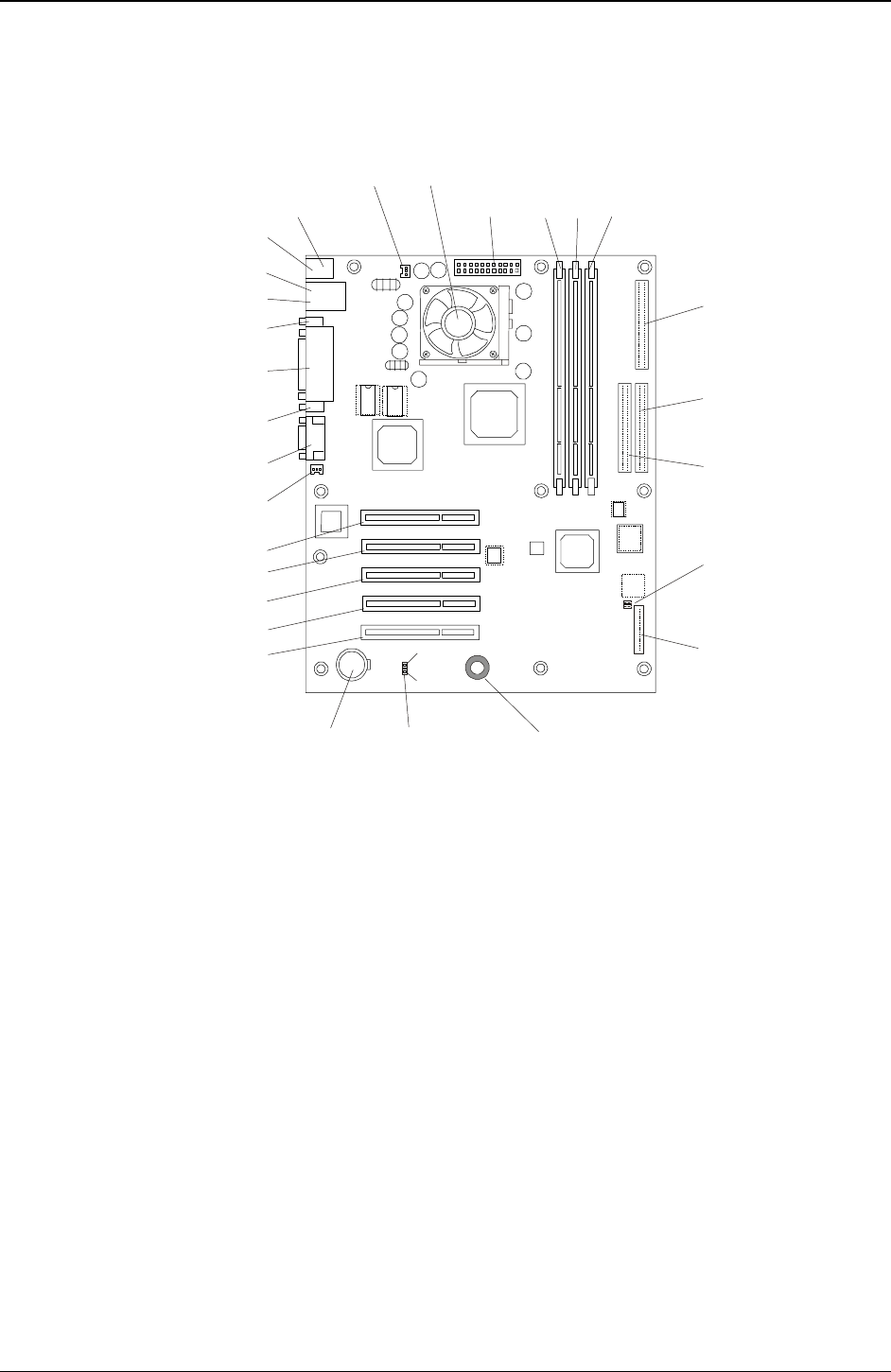

System Board Components/Connectors
Illustration Notes
(L) = Lower connector(s)
(U) = Upper connector(s)
