Removing the Flexible Disk Drive (FDD)

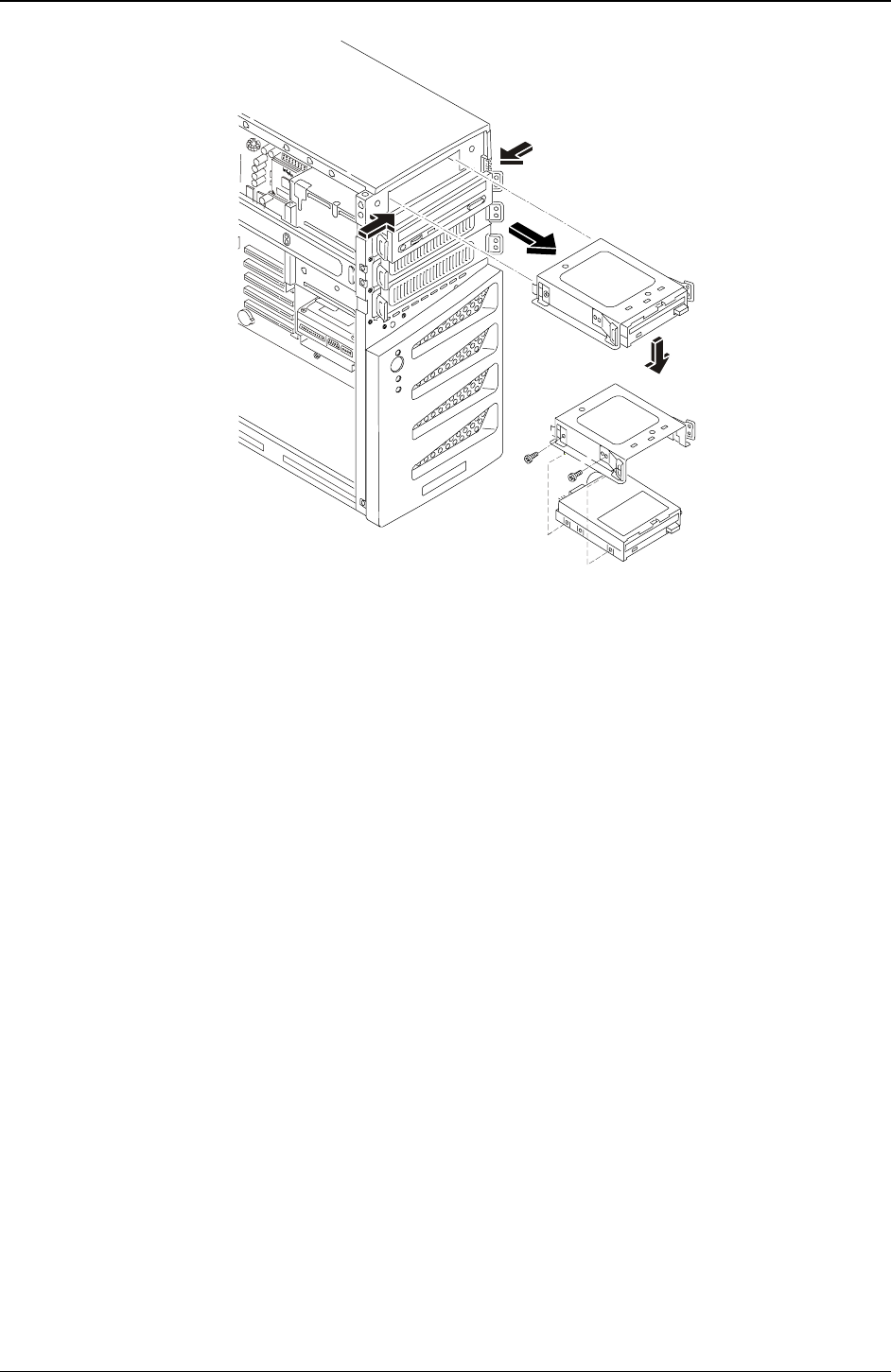

7. Rotate the FDD mounting assembly off of the flexible disk drive.
8. Place the flexible disk drive in an anti-static bag.
Replacing the Flexible Disk Drive
1. If not already mounted, place the two hooks in the screw holes on the right side of the FDD and rotate
the FDD mounting assembly onto the flexible disk drive.
2. Secure the FDD mounting assembly on the flexible disk drive by inserting the two screws.
3. With the cable connectors toward the rear of the chassis, place the mounted FDD assembly into the rail
guides and move the FDD into the chassis opening using the rails.
The flexible disk drive is only mounted in the top-most shelf (shelf 1).
4. Push the FDD assembly all the way into the chassis until the FDD assembly snaps into place.
5. The two tabs should click when in place.
6. At the rear of the flexible disk drive, carefully connect the power and data cable.
7. Replace the upper bezel.
8. Replace the left side cover.
9. Replace the external cables and power cord.
10. Power on the Server as described in Chapter 2, “Controls, Ports, and Indicators.”
Removing the CD-ROM
1. If the Server is operating, power down the Server.
Refer to Chapter 2, “Controls, Ports, and Indicators” for instructions.
2. Disconnect the power cord and any external cables connected to the Server.
If necessary, label each one to expedite re-assembly.
3. Remove the left side cover.
