Chapter 9 Remove/Replace Procedures
71

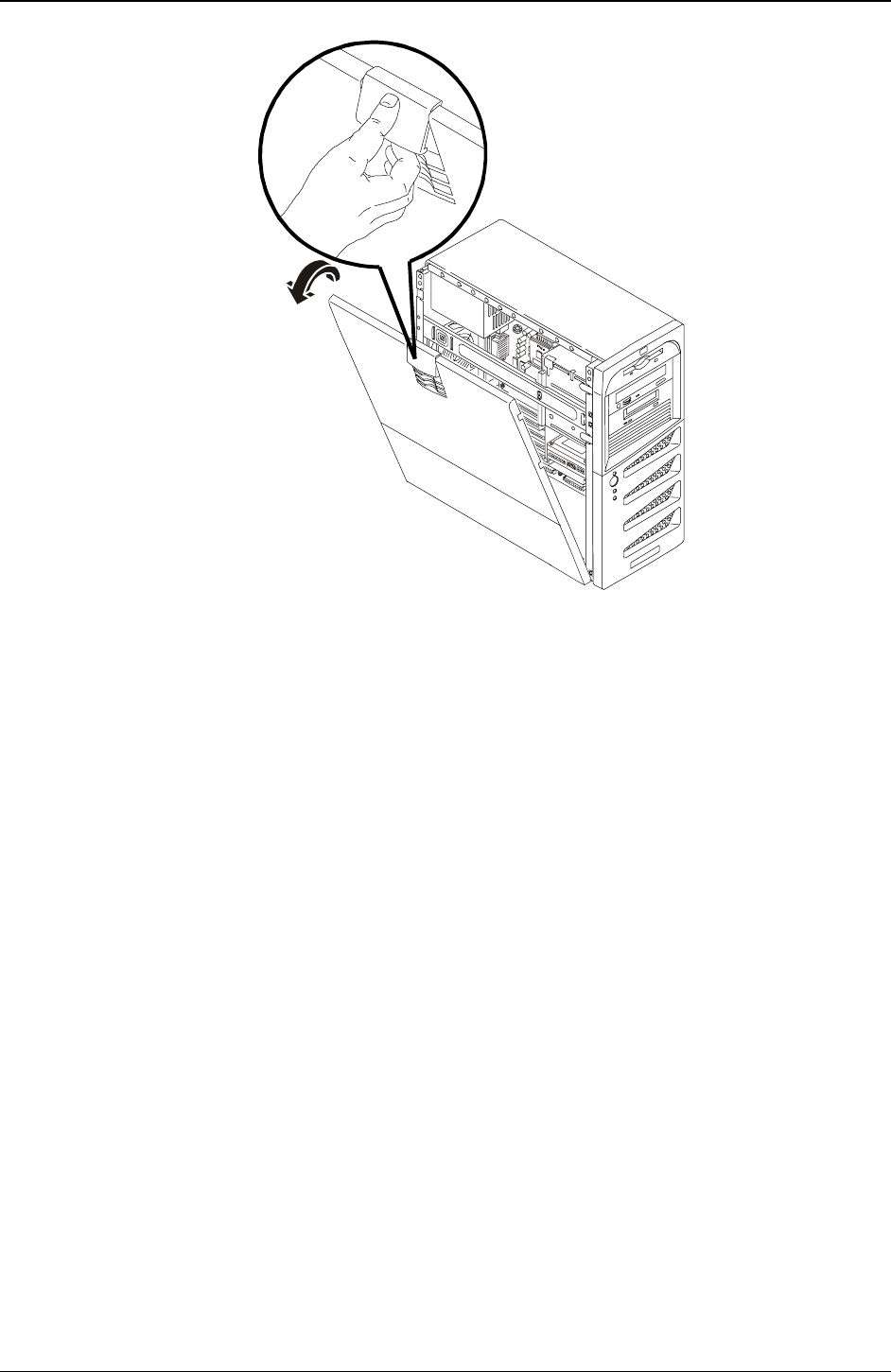

Removing the Left Side Cover
6. Place the left side cover in a safe place for re-installation later.
Replacing the Left Side Cover
To replace the left side cover, follow these steps:
1. If you have been installing accessories or servicing the Server, return the Server to its normal upright
position.
2. Use two hands to place the side cover’s lower edge at an angle to the hinge latches along the bottom of
the chassis.
The hinge latches are keyed to accept the side cover in only one position.
3. With the side cover resting on the hinge latches, tilt the side cover up until it engages the locking
mechanism at the top of the chassis.
4. Lift the latch to engage the lock and completely close the side cover.
The side cover should snap when it engages the lock mechanism.
