Chapter 9 Remove/Replace Procedures
70
2. Power down the Server and disconnect the power cord and any phone lines.
3. If necessary, unlock the left side cover, using the lock located on the rear of the Server.

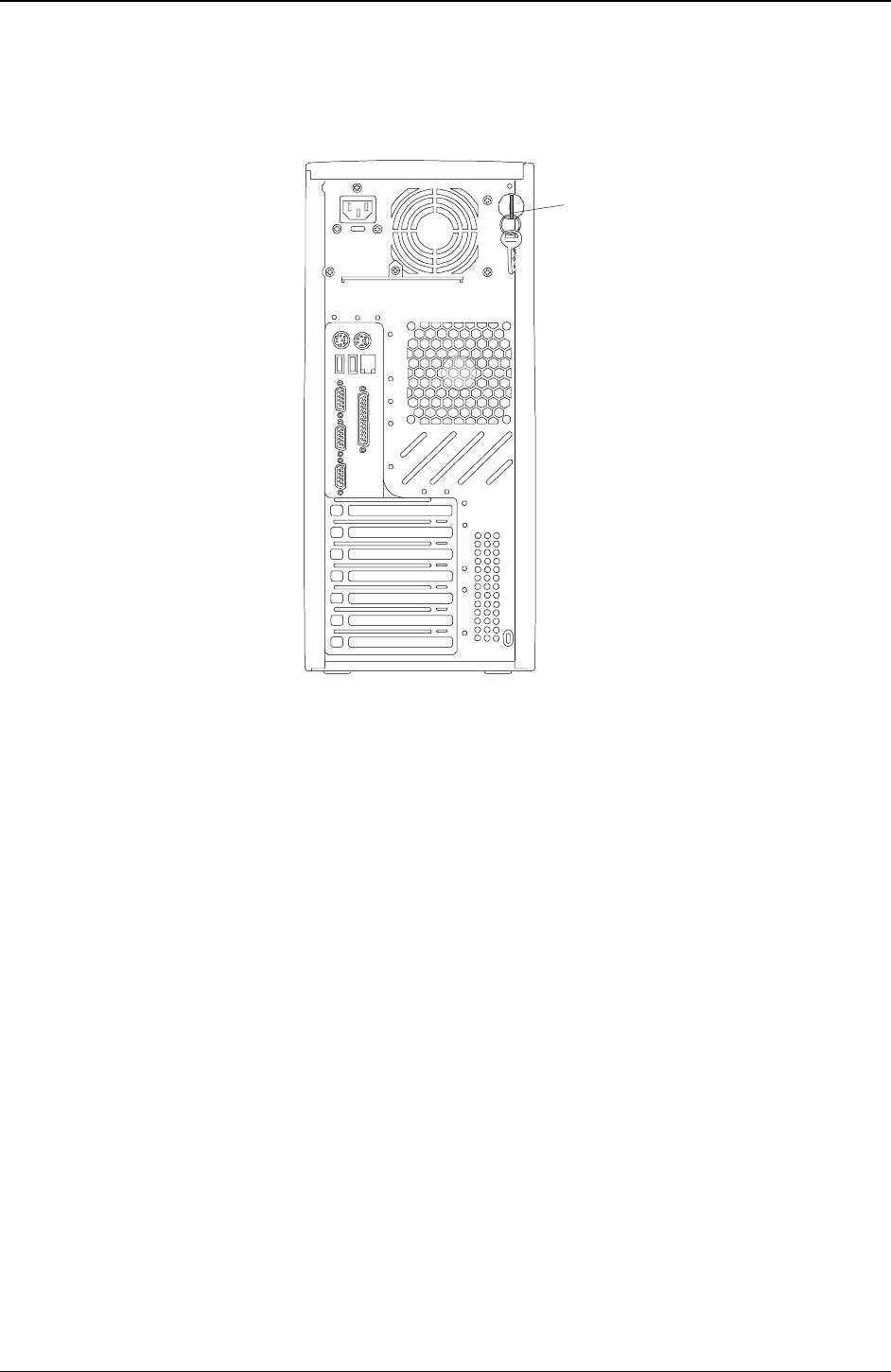

The locking mechanism is at the rear, as shown below. Initially, the keys are attached to the rear of the
HP Server, similar to the view shown below.
Turn Key
to Unlock
Unlocking the Left Side Cover
4. Open the latch by lifting it up and out on the left side cover, to release the side cover.
5. Open the left side cover, by pulling the top away from the chassis, and then lifting it up to disconnect it
from the chassis.
