3 Connector Pinouts
Unless otherwise noted, the following features apply to all models. Some features are factory installed; others
are optional.

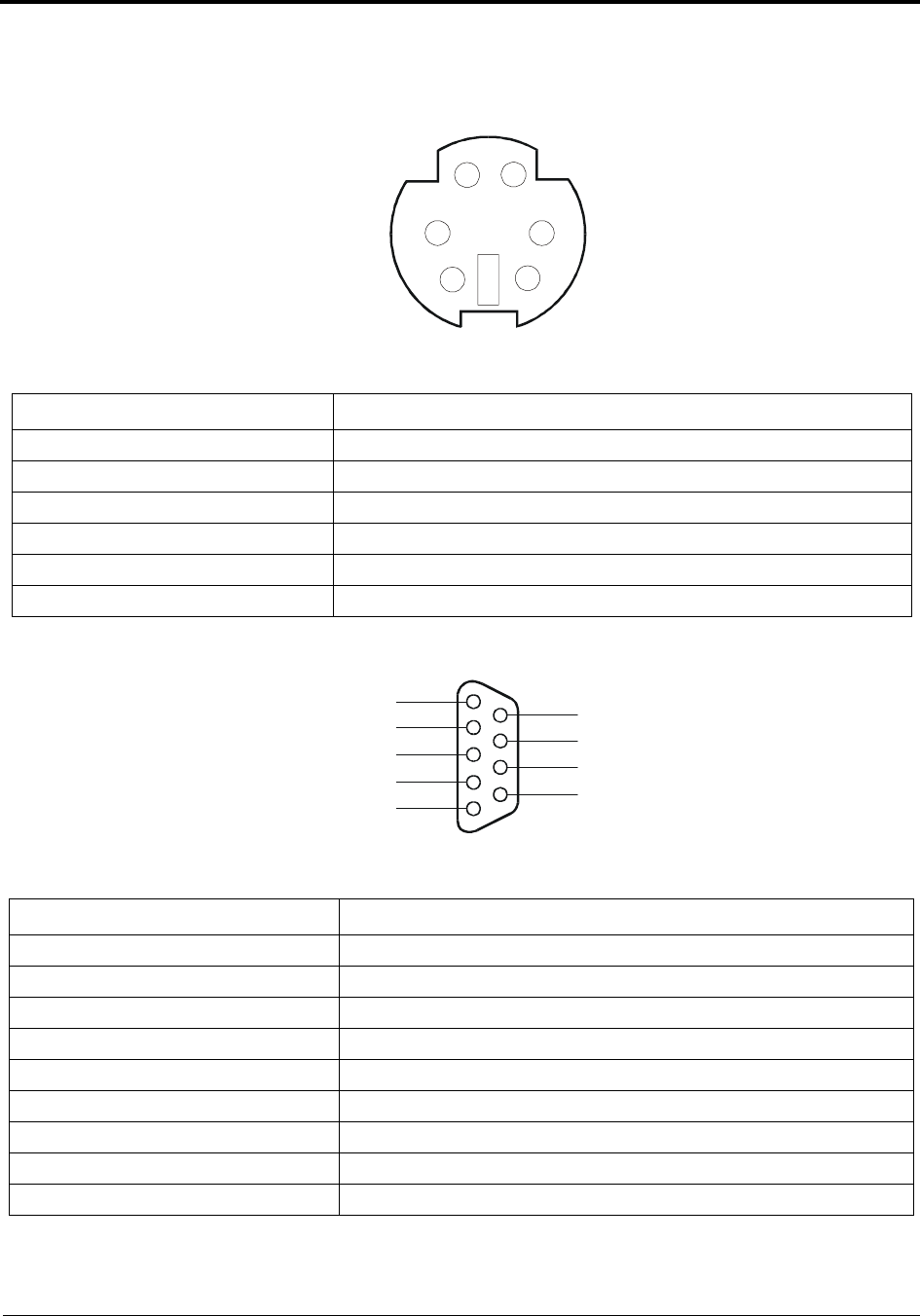

Mini-DIN (PS/2) Connectors
1
2
5
6
4
3
Mini-DIN Connector (female) for the Mouse and Keyboard
Mini-DIN Connector Pinouts for the Mouse and Keyboard
Pin Number Signal Description
1 Data signal
2 Not used
3 Ground
4 Power (+5 V dc)
5 Clock signal
6 Not used
Serial Port Connector
5
4
3
2
1
9
8
7
6
Serial Port Connector
Serial Port Connector (male) Pinouts
Pin Number Signal Description
1 Data carrier detect
2 Receive data
3 Transmit data
4 Data term ready
5 Signal ground
6 Data set ready
7 Request to send
8 Clear to send
9 Ring indicator
