Install the SCSI I/O modules

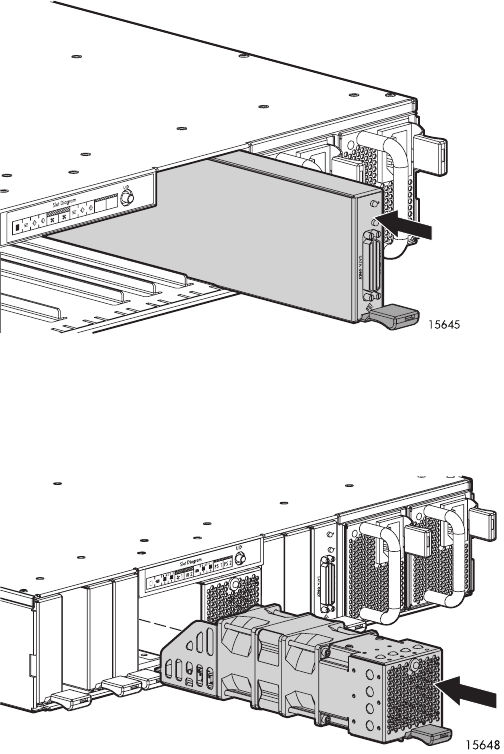

1. Slide the module into the chassis SCSI I/O slot until the latch clicks into place.
2. Install all other SCSI I/O modules or blanks.
Install the fan modules
1. Slide the module into the chassis fan slot until the latch clicks into place.
2. Install the other fan module.
