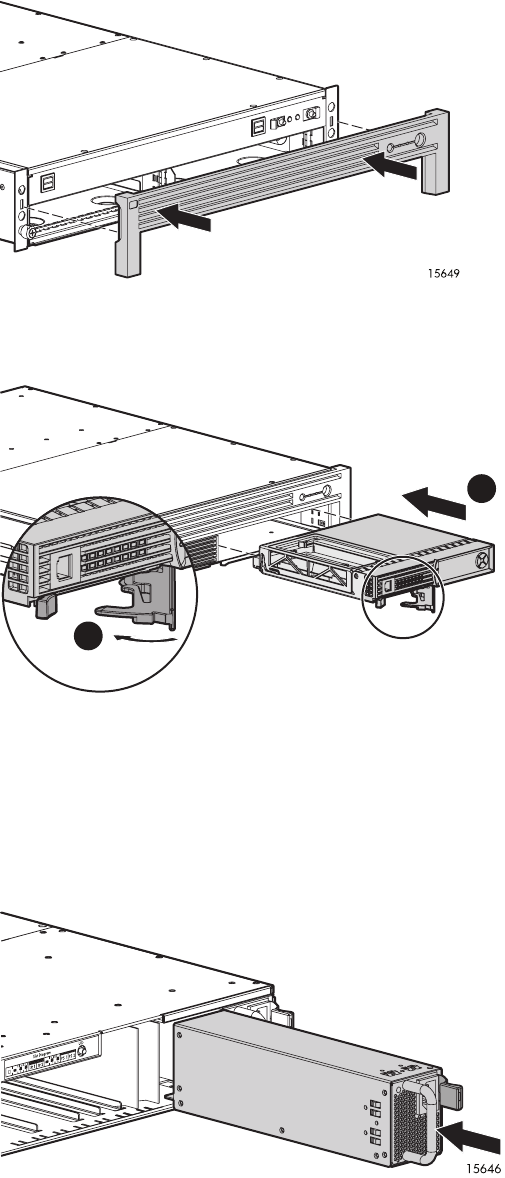

2. Attach the decorative bezel on the front of the MSA by aligning the pins and retaining clips on the
back of bezel with the corresponding locations on the front of the chassis. Then, with even pressure,
push firmly on the bezel until the retaining clips engage.
Install the controllers
1. Press the controller thumb latch and rotate the latch handle out.
2
1
15493
2. Slide the controller into the chassis and then push firmly to ensure a good seat.
3. Rotate the latch handle inward, pressing until it is flush against the front panel.
4. Install the other controller or blank.
Install the power supply modules
1. Slide the module into the chassis power supply slot until the latch clicks into place.
2. Install the other module.
