2. Grasp the latch handle and pull the controller out of the chassis.
3. Remove the other controller or blank.
Remove the MSA from the rack

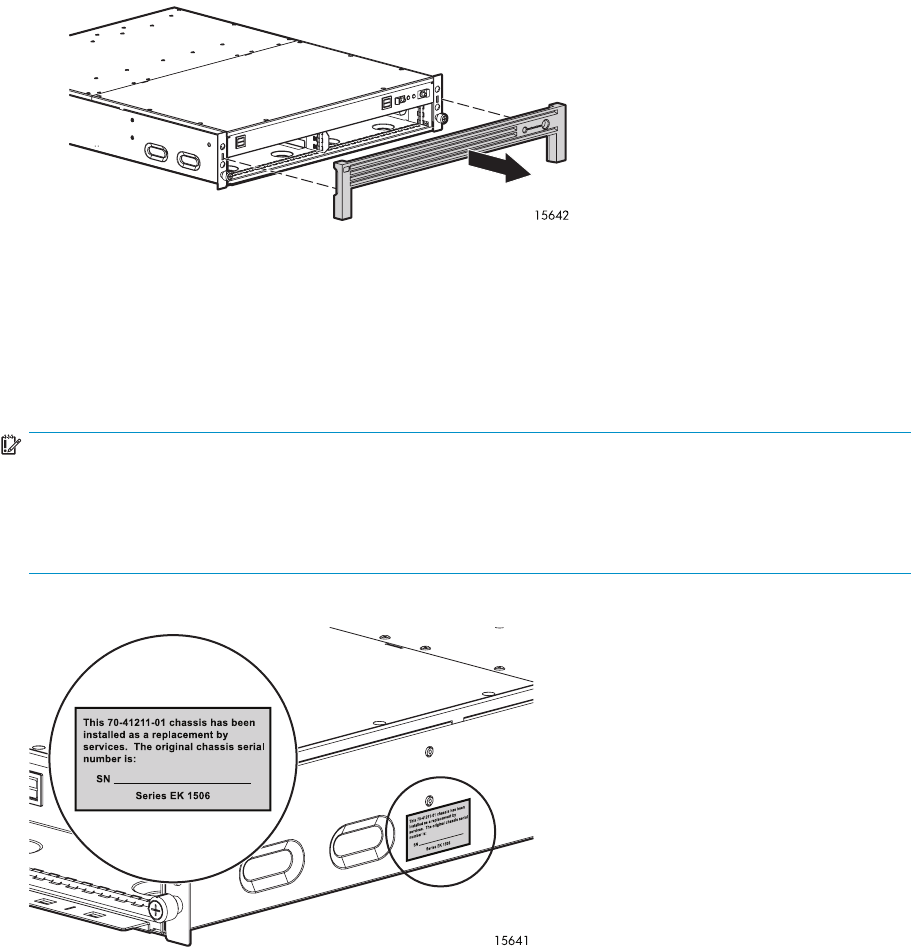

1. Remove the dec
orative bezel from the front of the MSA by grasping the outside edges and pulling
with sufficien
tforcetodisengagetheretainingclips.
2. Loosen the thumbscrews securing the MSA to the front of the rack, and then slide the MSA out
of and away from the rack.
Installing the replacement chassis
Record th
eserialnumbersofthetwochassis
IMPORTANT:
Depending on the MSA model and firmware version, the serial number of the original chassis may
automatically be transferred to the replacement chassis. For continued service and support from
HP-authorized service personnel, the serial number of the original chassis must also be physically
recorded on the label of the replacement chassis.
The product label is located on the side of the MSA chassis.
Install the MSA in the rack
1. Slide the MSA into the rack, and then secure the MSA to the front of the rack, using the thumbscrews
on the front of the MSA.
64
