Remove the SCSI I/O modules

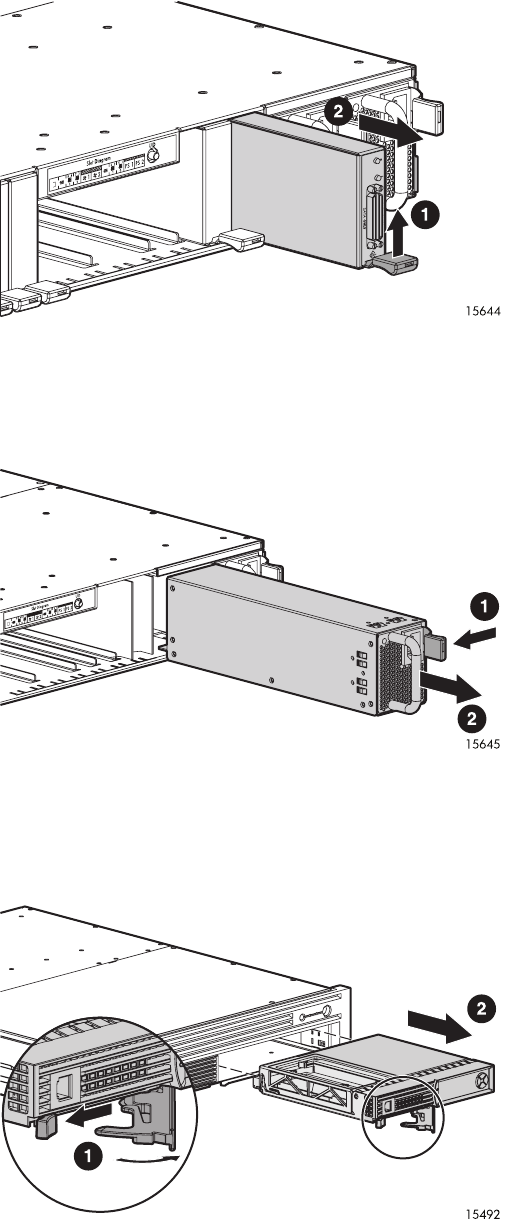

1. Lift the port-colored latch and pull the module out of the chassis.
2. Remove all other SCSI I/O modules or blanks.
Remove the power supply modules
1. Press the port-colored latch towards the side of the module and pull the module out of the chassis.
2. Remove the other module.
Remove the controllers
1. Press the controller thumb latch to release the latch handle, and then rotate the latch handle out.
