Removing the chassis components
Prepareforthereplacement
1. Review all warnings, cautions, and preparation procedures as detailed in Warnings and precautions.
2. If the MSA is operational, stop all access to the MSA.
3. Press and hold the Power on/Standby button for five seconds to place the MSA in Standby mode.
4. Label each cable carefully and then disconnect all of the cables.

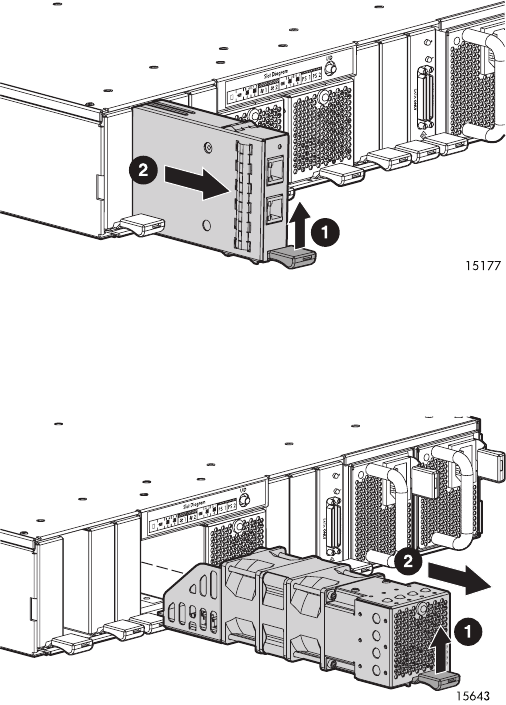

Remove the 2-Port Ethernet iSCSI I/O modules
1. Lift the port-colored latch and pull the module out of the chassis.
2. Remove the other I/O module or blank.
Remove the fan modules
1. Lift the port-colored latch and pull the module out of the chassis.
2. Remove the other fan module.
