Installing the p
ower supply module

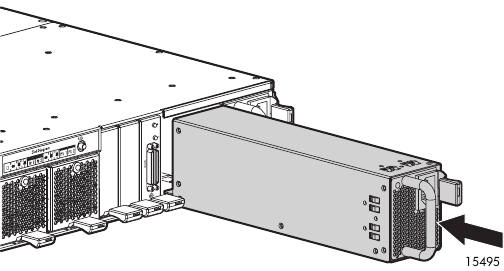

1. SlidethereplacementpowersupplymoduleintotheMSAchassisbayuntilthemoduleclicksinto
place.
2. Connect the AC power cord to the power supply.
Verifying proper operation
After replacing the power supply, verify that:
• The power supply Status LED is solid green.
• No new error messages are displayed on the array controller LCD panel.
