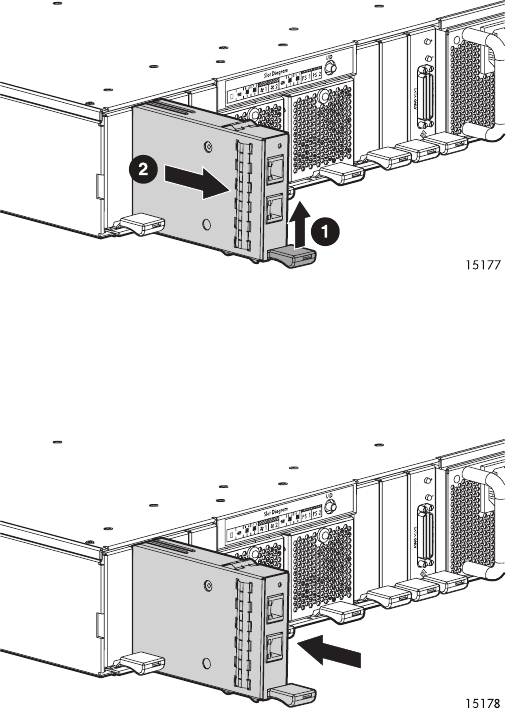

3. Lift the port-colored 2-Port Ethernet iSCSI module latch (1)andpullthemoduleoutoftheenclosure(2).
Installing the 2-Port Ethernet iSCSI I/O module
1. Slide the r
eplacement 2-Port Ethernet iSCSI module into the MSA chassis bay until the module
clicks into place.
2. Reconnect the cables.
Verifying proper operation
After replacing the failed 2-Port Ethernet iSCSI module verify that:
• The 2-Port Ethernet iSCSI module status LED is solid green.
• No new error messages are displayed on the array controller LCD panel.
