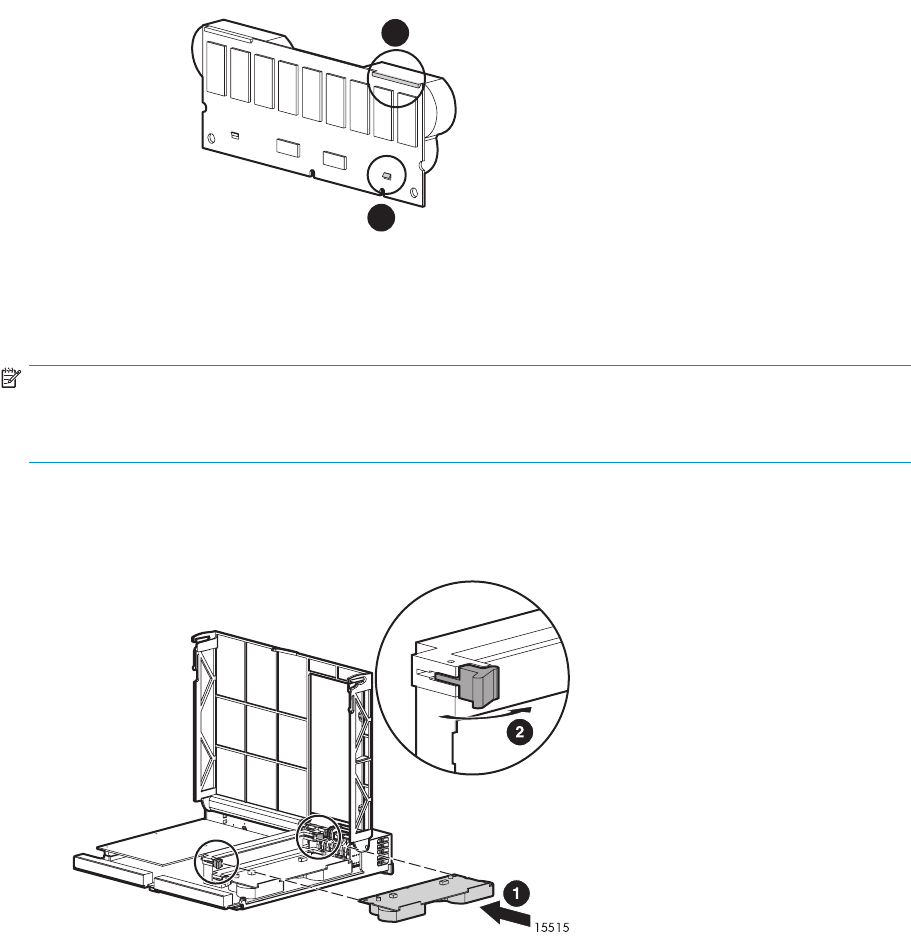

6. Verify that the top hook (1)andbottomclip(2) on the battery pack are securely attached to the
cache module.
15520
1
2
7. Repeat step 4 through step 6 to install the second battery pack on the module.
8. Install the serviced cache module in the controller as instructed in Installing the controller cache
module.
NOTE:
The cache is disabled while the batteries are charging and is automatically re-enabled after the batteries
are fully charged.
Installing the controller cache module
1. Slidethecachemoduleintothecontroller(1), until the side latches are fully engaged (2).
2. Close the controller cover.
3. Insert the serviced controller into the chassis as instructed in Installing the controller.
