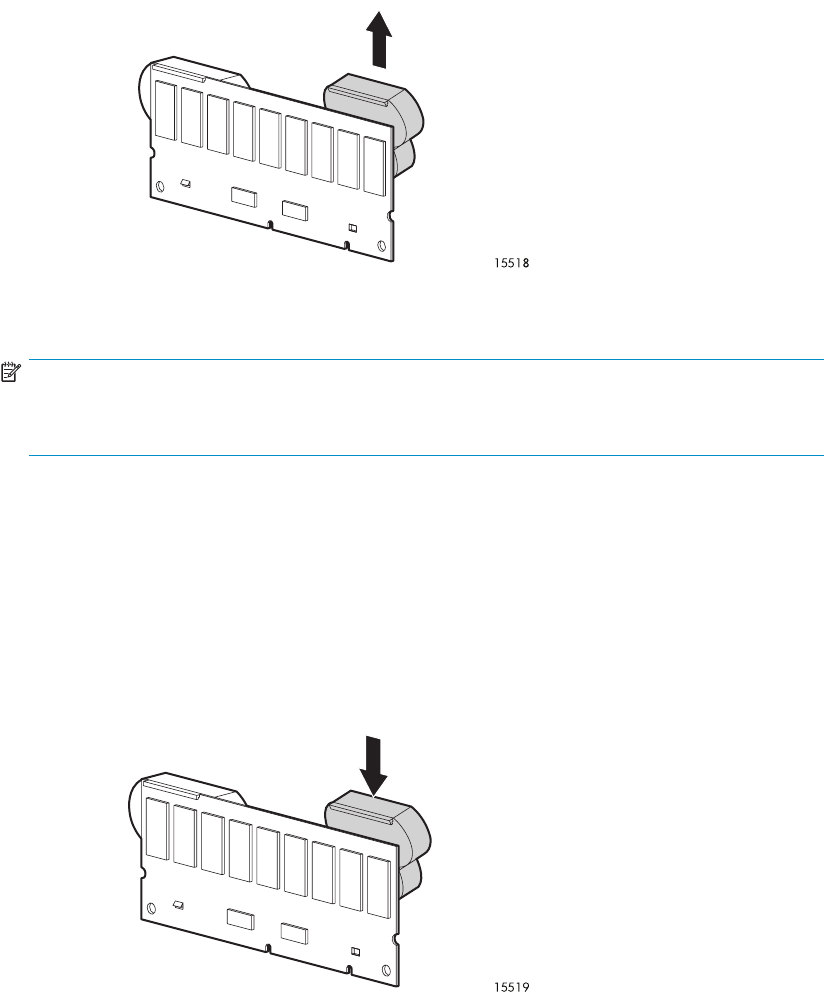

5. Lift the pack upward to unhook the top of the battery pack.
6. Wait approximately 15 seconds after removing the old battery to allow the battery charge monitor to
reset.
NOTE:
If you do not wait 15 seconds after removing the old battery, full charge of the new cache
battery is delayed.
7. Repeat step 3 through step 6 to remove the second battery pack on this cache module.
Installing the controller cache battery pack
1. Remove the array controller as instructed in Removing the controller.
2. Remove the controller cache module as instructed in Removing the controller cache module.
3. Remove the controller cache battery pack as instructed in Removing the controller cache battery pack.
4. Hook the top of the new NiMH battery pack to the top of the module, with the pack held at a
30-degree angle to the plane of the module.
5. After the battery pack is hooked in position, swing the pack downward, ensuring that the bottom
clip and two pegs line up with the holes in the cache module.
50
Customer replaceable components
