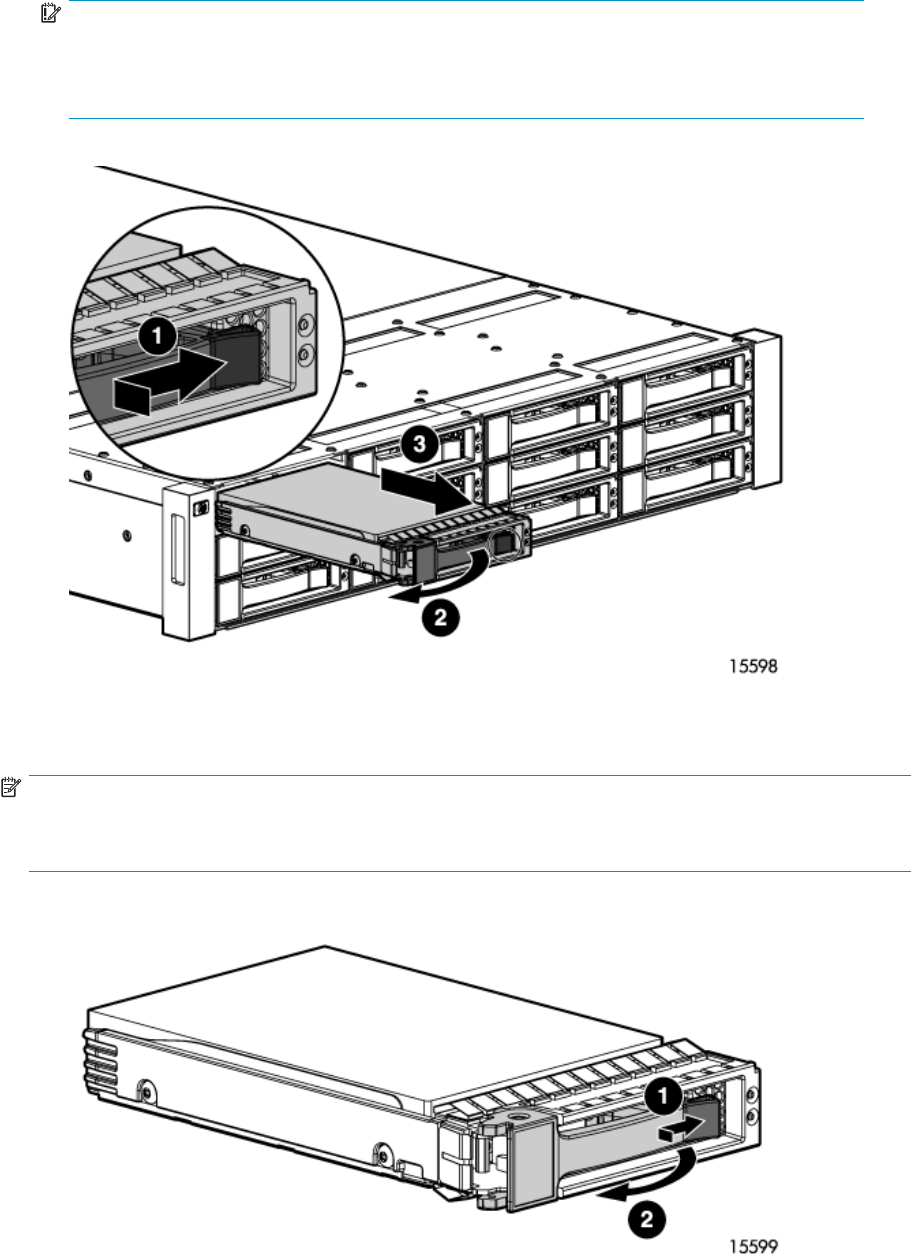

3. Press the ejector button (1) and pull the release lever to the full open position (2).
IMPORTANT:
Wait approximately 10 seconds for the internal disk to stop spinning before pulling the
hard drive out of the enclosure. Handling a hard drive while the internal media is spinning
can damage the media.
4. Pulltheharddriveoutofthestorageenclosurebay(3).
Installing the hard drive
NOTE:
Illustrations in this section demonstrate installing a hard drive in an MSA20 storage enclosure. The
procedure for installing a hard drive in an MSA30 or other storage enclosure is similar.
1. Press the hard drive ejector button (1) and pull the release lever to the full open position (2).
44
Customer replaceable components
