Power supply module LEDs

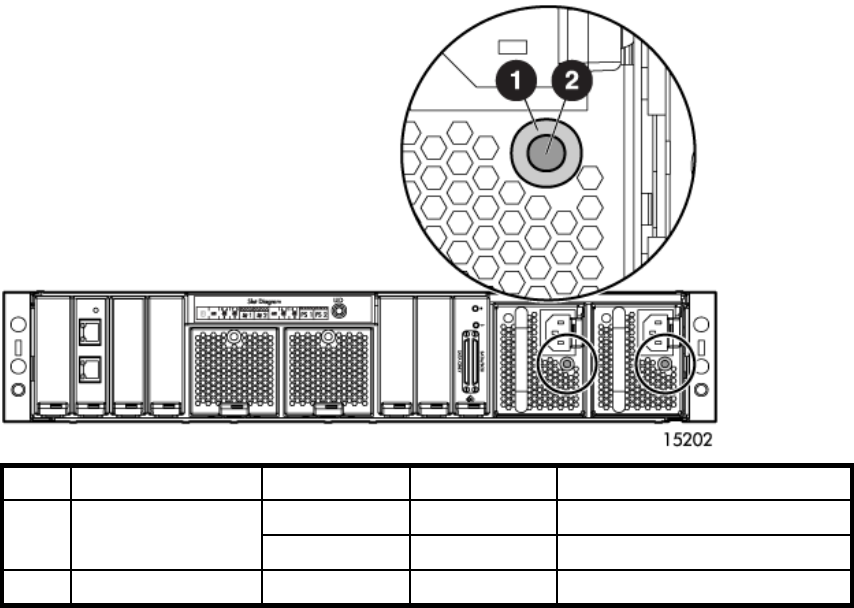

The power supply uses a single bi-color LED to indicate status. This LED can be illuminated with either a
green or amber color. The following figure and table describes their locations and meanings.
Item Name
Condition Color
Description
Solid
Green
The power is on.
1
Status
Off
—
The power is off.
2
Fault Blinking Amber
Afaultwasdetectedonthismodule.
28
System components and LEDs
