57
Tab HPGL
If you are working with HPGL files (vector files),
the tab HPGL will be available in the main
window. With these files, the emulation of some
printers is possible.

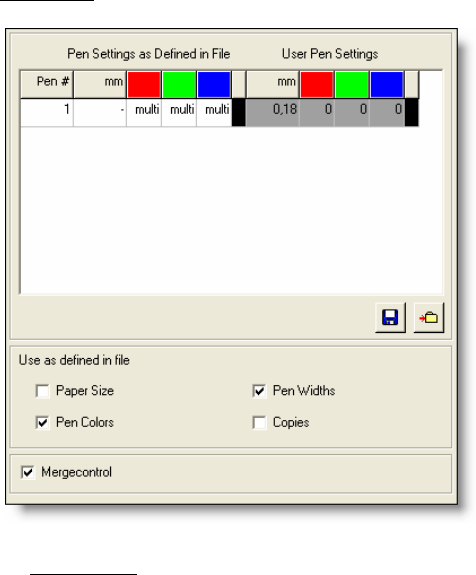

Pen Settings
HPGL/2 files are able to store certain parameters within the file. The usage of this information can be
switched on and off.
PAPER
SIZE – If this option is active the image dimension are – regardless of the file content –
determined with the parameters within the file. If you deactivate this option the image dimensions is
calculated by the software. Huge white areas outside of the image will not be printed.
PEN WIDTHS – Deactivate this option in order to set the size of the pens manually.
PEN COLORS - Deactivate this option in order to set the pens colors manually.
MERGECONTROL – Controls the merging of different layers. This command works like the menu on most
HP printer displays.
COPIES – Determines if the value for the number of copies is read from the file. If the option is checked,
you cannot set the number of copies in the main window’s tab GENERAL.
