User's Manual
Table Of Contents
- Introduction / Requirements
- Installation
- Login
- Keycode Entry
- Hardware Configuration
- Printers / Queues
- The Configuration Wizard
- Create Queue
- Create Printer Cluster
- Preferences
- Menu Bar Options
- Reprocontrol.client main applications
- Filter Editor
- Functions and Structure of the Filter Editor
- Preview of the Filter Editor
- Histogram
- Tab Black and White Point (Color Mode without Color Management)
- Tab Postprocessing (Black & White Mode)
- Tab Gamma Correction (Color Mode without Color Management)
- Tab Enhancement (Color Mode with Color Management)
- Tab Special Filter (All Modes except of Black & White Mode)
- Tab Color Adjust (Color Mode with Color Management)
- Tab Color Exchange (Color Mode with Color Management)
- Functions and Structure of the Filter Editor
- Reprocontrol.WinDriver
- Reprocontrol.monitor
- Costtracker
- Reprocontrol.backup
16
The Configuration Wizard
The Configuration Wizard guides you through the configuration and calibration of your printers.
The options of the single dialogs are device-dependent.
You get from one dialog into the other via NEXT.
BACK will bring you back to the previous dialog.

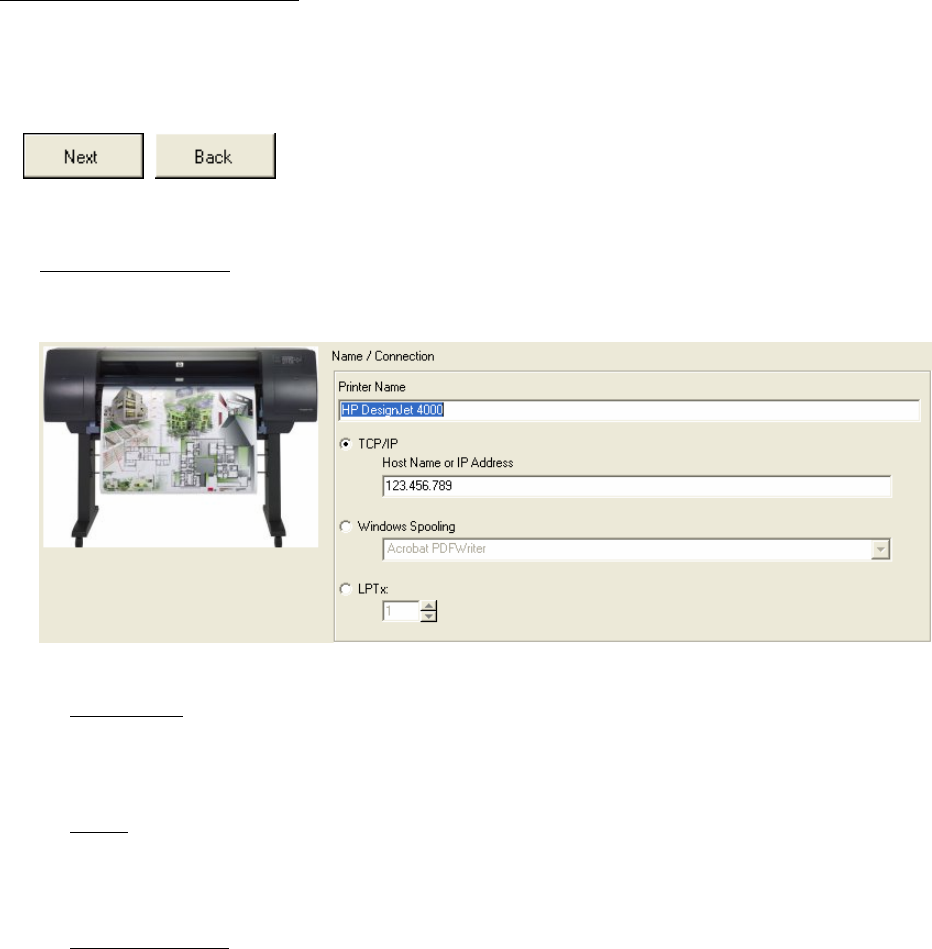

Name / Connection
Enter the type of connection you are going to use.
Printer Name
This text field allows you to change the name of the printer.
TCP/IP
Type in the field the TCP/IP address of your printer.
Windows Spooling
Choose a printer driver for your printer within the drop down list. To avoid editing delays, print jobs are sent to
and stored in a buffer memory until the printer is ready. Windows driver settings are ignored.
When all settings are made, click on N
EXT.
The software will search for included color/calibration profiles and import them if found. After this the roll
configuration of the printer is checked.
If no profile is found or if you cancel the import, the software will ask if you want to search the ftp-server as an
alternative. If you click on N
O or if there are no valid profiles for your printer, you will automatically get to the window
P
LACEMENT. If you decide to search the ftp-server and profiles are available, please select the desired profile
created with the appropriate program version. Then click on D
OWNLOAD to import the profile library to your
reprocontrol for HP.
