User's Manual
Table Of Contents
- Introduction / Requirements
- Installation
- Login
- Keycode Entry
- Hardware Configuration
- Printers / Queues
- The Configuration Wizard
- Create Queue
- Create Printer Cluster
- Preferences
- Menu Bar Options
- Reprocontrol.client main applications
- Filter Editor
- Functions and Structure of the Filter Editor
- Preview of the Filter Editor
- Histogram
- Tab Black and White Point (Color Mode without Color Management)
- Tab Postprocessing (Black & White Mode)
- Tab Gamma Correction (Color Mode without Color Management)
- Tab Enhancement (Color Mode with Color Management)
- Tab Special Filter (All Modes except of Black & White Mode)
- Tab Color Adjust (Color Mode with Color Management)
- Tab Color Exchange (Color Mode with Color Management)
- Functions and Structure of the Filter Editor
- Reprocontrol.WinDriver
- Reprocontrol.monitor
- Costtracker
- Reprocontrol.backup
10
reprocontrol.server
This will install reprocontrol.server, reprocontrol.print and reprocontrol.client. Every network computer having
installed reprocontrol.server can be a server for all print jobs sent by reprocontrol.clients.
Reprocontrol.client is needed to configure your reprocontrol.server and to work with images. If you run a local
reprocontrol.server while using reprocontrol.client, you will be automatically identified as an administrative
reprocontrol.client.
Reprocontrol.print is a separate RIP-processing service. It is not necessary to use the same reprocontrol.print
installed with reprocontrol.server as long as at least one PC provides reprocontrol.print to the network.
reprocontrol.client
Choosing this option will only install the client version of reprocontrol for HP. Thus, reprocontrol.clients need
network access to computers providing a reprocontrol.server.
Reprocontrol.client is the basic program to work with images and to print them. Additionally, it is needed to
customize your reprocontrol.server to your demands.
reprocontrol.print
Only reprocontrol.print is installed on your system after selecting this option. Reprocontrol.print is a subsystem
for calculating RIP-processes. It is an essential part of the reprocontrol network and has to be provided to the
network at least by one PC.

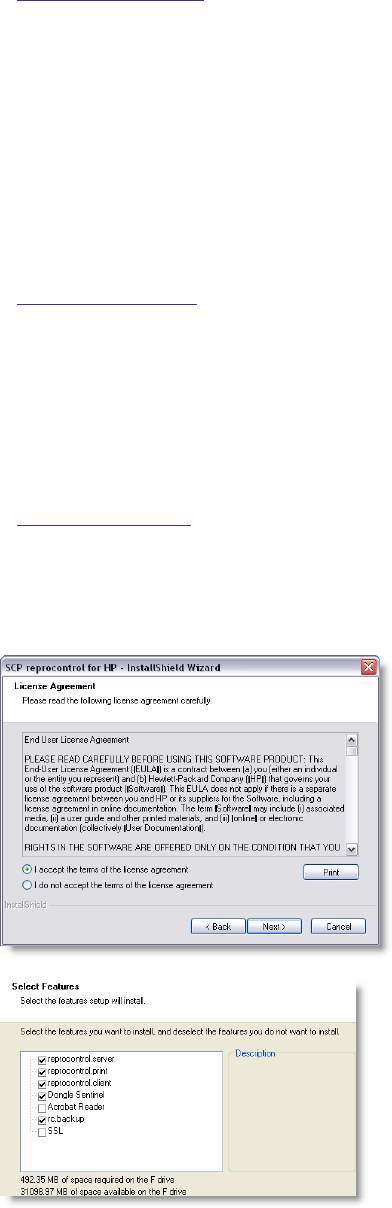

After selecting the desired program, you then have to accept
the license agreement by selecting the corresponding radio
button option in order to continue the installation. To get a print
out version of the same license agreement as displayed, click
the P
RINT button.
If you do not accept the terms of the license agreement, the
installation process will be terminated.
After accepting the license agreement, you have to select a setup
type by activating the corresponding radio button. You can select
among COMPLETE and CUSTOM.
If you pick CUSTOM, you then have the choice where to install the
program. Click on C
HANGE to alter the default destination location
of the program(s).
If you have opted for the C
USTOM setup, you will be further
prompted to select the components you want to install. Put a
checkmark at each box belonging to the desired component. The
selections may differ depending on the reprocontrol for HP
components you are going to install. Pay attention to the option
SSL if you want to activate the SSL-data transfer.
