Hardware Reference Manual
Table Of Contents
- Product Features
- Hardware Upgrades
- Tools Needed
- Warnings and Cautions
- Mounting the RP7 to a Wall or Swing Arm
- Installing the RP7 Adjustable Stand
- Routing Cables to External Devices
- Installing Optional Integrated USB Modules
- Installing an Optional HP Retail RP7 10.4” Customer Display
- Installing an Optional HP Retail RP7 VFD Customer Display
- Installing Additional Memory
- Removing and Installing a Hard Drive
- Replacing the Battery
- Using the USB Security Cover
- Securing the RP7 to a Counter Top
- Installing an External Security Lock
- Configuring the Software
- Troubleshooting
- Electrostatic Discharge
- Computer Operating Guidelines, Routine Care and Shipping Preparation
- Index

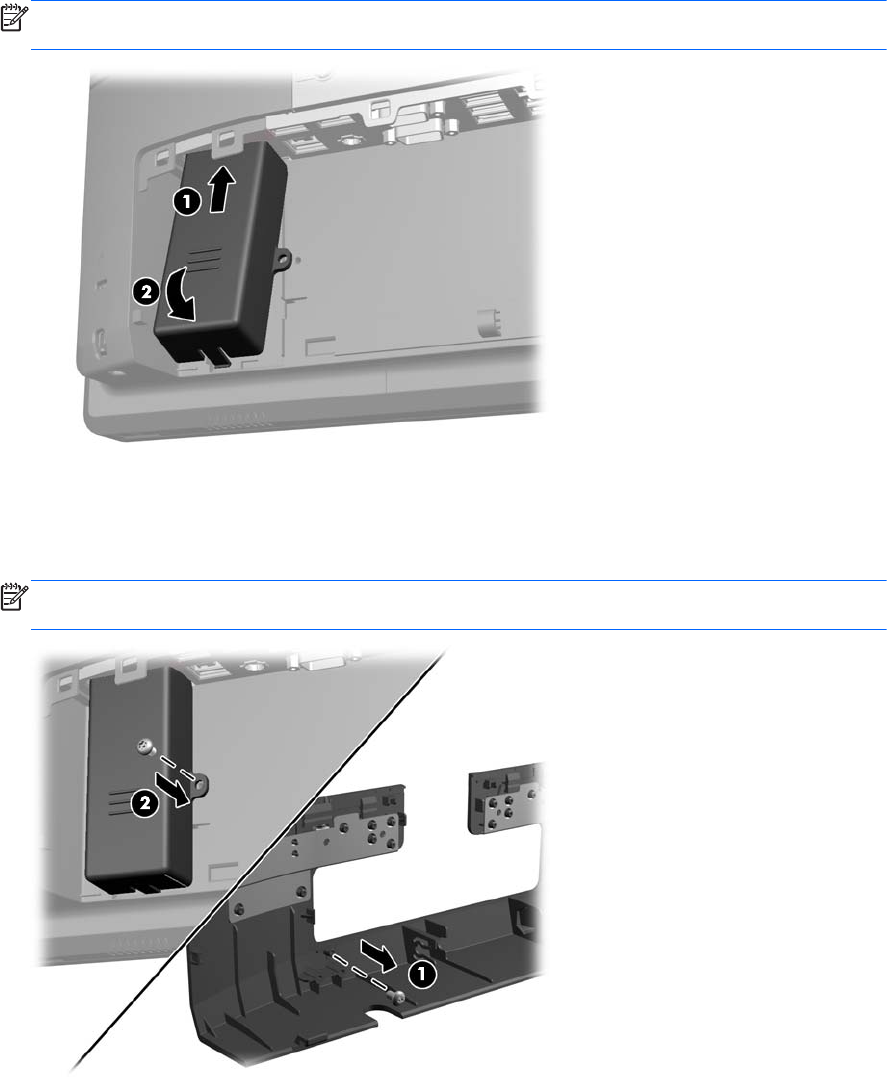

6. Insert the top of the USB security cover into the I/O panel at an angle with the bottom of the
cover slightly raised (1), then rotate the bottom down so that the cover snaps in place (2).
NOTE: If the USB device has a cable, place the cable in the channel on the side of the security
cover.
7. If you want to secure the USB port, remove the security screw from the inside of the rear I/O
panel and install the screw in the screw hole on the side of the USB security cover.
NOTE: You must use a T-10 tamper-resistant Torx screwdriver available from HP to install the
security screw.
ENWW Using the USB Security Cover 55
