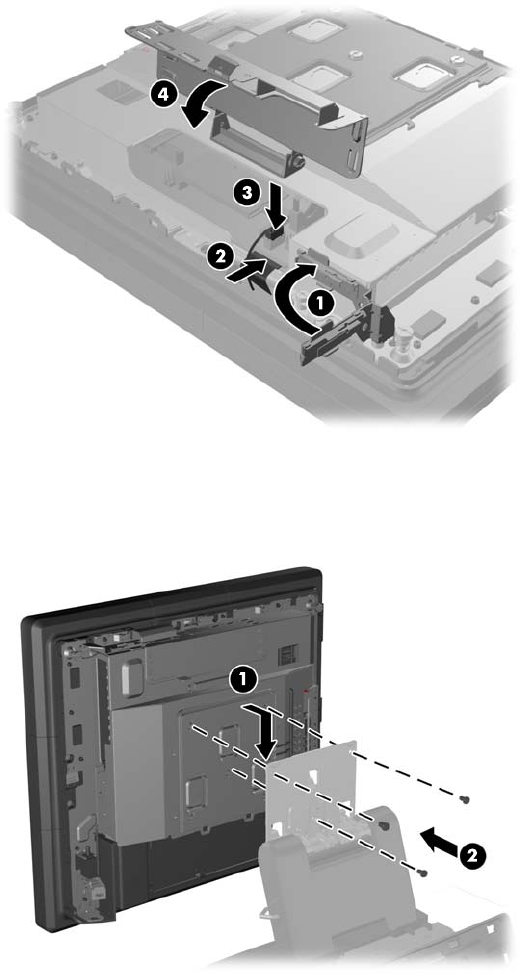

14. Swing the antenna bracket in toward the chassis (1), connect the DisplayPort signal cable (2)
and power cable (3), and close the memory access door (4).
15. Attach the RP7 display head to the stand's mounting bracket by aligning the slots on the display
head with the hooks on the mounting bracket and sliding the display down (1). Install the three
screws through the mounting bracket and into the display head to secure it in place (2).
ENWW Replacing the Battery 51
