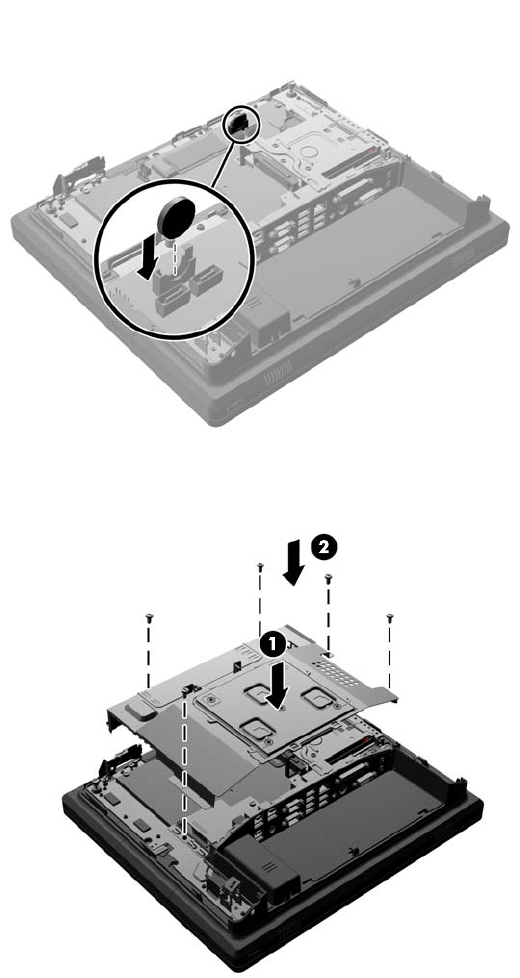

12. Insert the new battery. Ensure that the positive side of the new battery is oriented in the same
direction as the battery that was removed.
13. Place the metal plate on the back of the display head (1) and secure it to the display head with
the five screws that were previously removed (2).
50 Chapter 2 Hardware Upgrades ENWW
