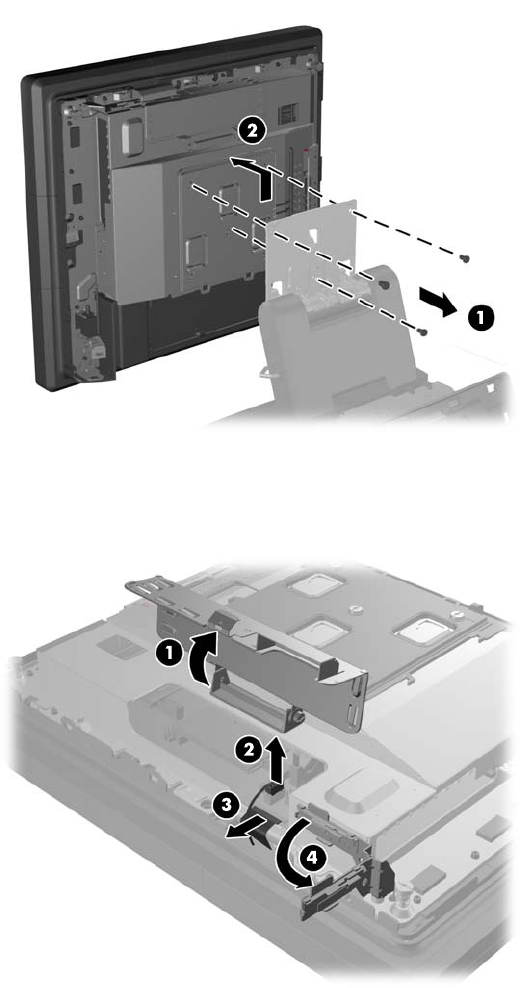

7. Remove the RP7 display head from the stand by removing the three screws that attach the
stand's mounting bracket to the display head (1) then slide the display up and off the mounting
bracket (2).
8. Lay the display head face down on a surface covered by a clean, dry cloth.
9. Open the memory access door (1), disconnect the DisplayPort power cable (2) and signal cable
(3), then swing the antenna bracket out away from the chassis (4).
48 Chapter 2 Hardware Upgrades ENWW
