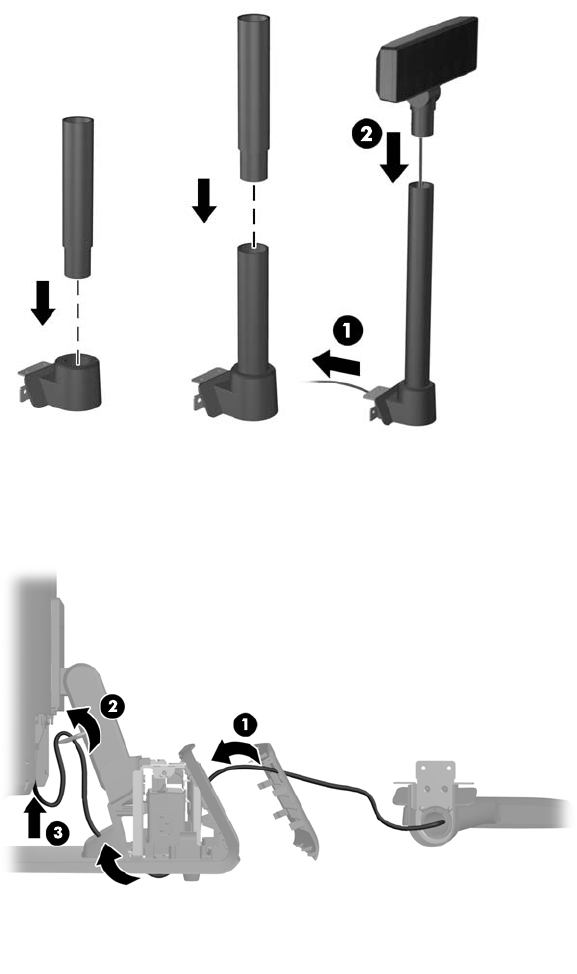

7. If you are installing the VFD with poles attached. slide either one or two poles onto the mounting
bracket, depending on the desired height of the VFD. Thread the VFD cable through the top of
the pole assembly and out the bottom of the mounting bracket (1), then slide the VFD onto the
pole assembly (2).
8. Route the VFD cable through the hole in the decorative panel that was included with the VFD,
then through the rear of the base (1) and out the front of the base. Continue to route the
extension cable up through the cable retainer (2) and connect the VFD cable to the 12V USB
port on the RP7 (3).
