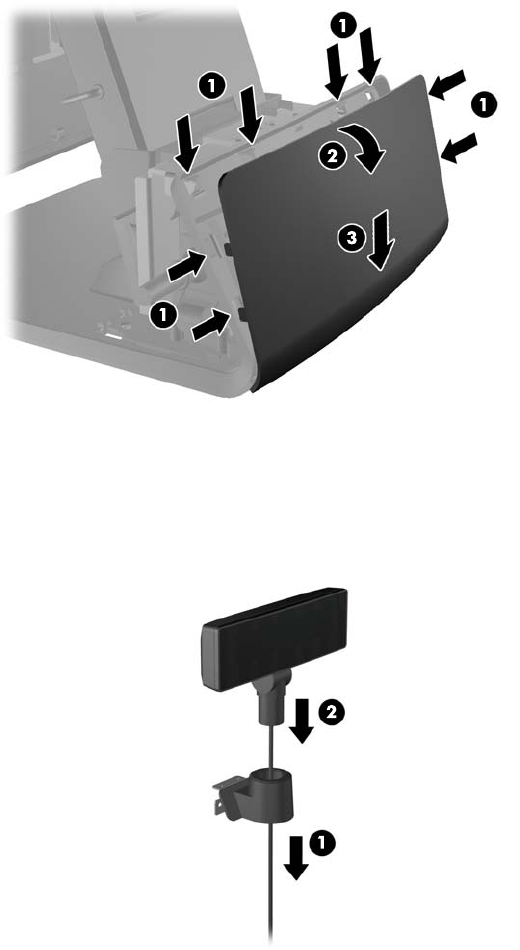

5. Remove the decorative panel on the rear of the unit by gently prying the panel away from the
base at the tab locations on the top and sides of the panel as indicated below (1). Then pull the
top of the panel away from the base (2) and push straight down on the panel to release the
bottom tabs (3).
6. If you are installing the VFD with no poles attached, insert the VFD cable through the center of
the mounting bracket (1) and slide the VFD onto the mounting bracket (2).
ENWW Installing an Optional HP Retail RP7 VFD Customer Display 31
