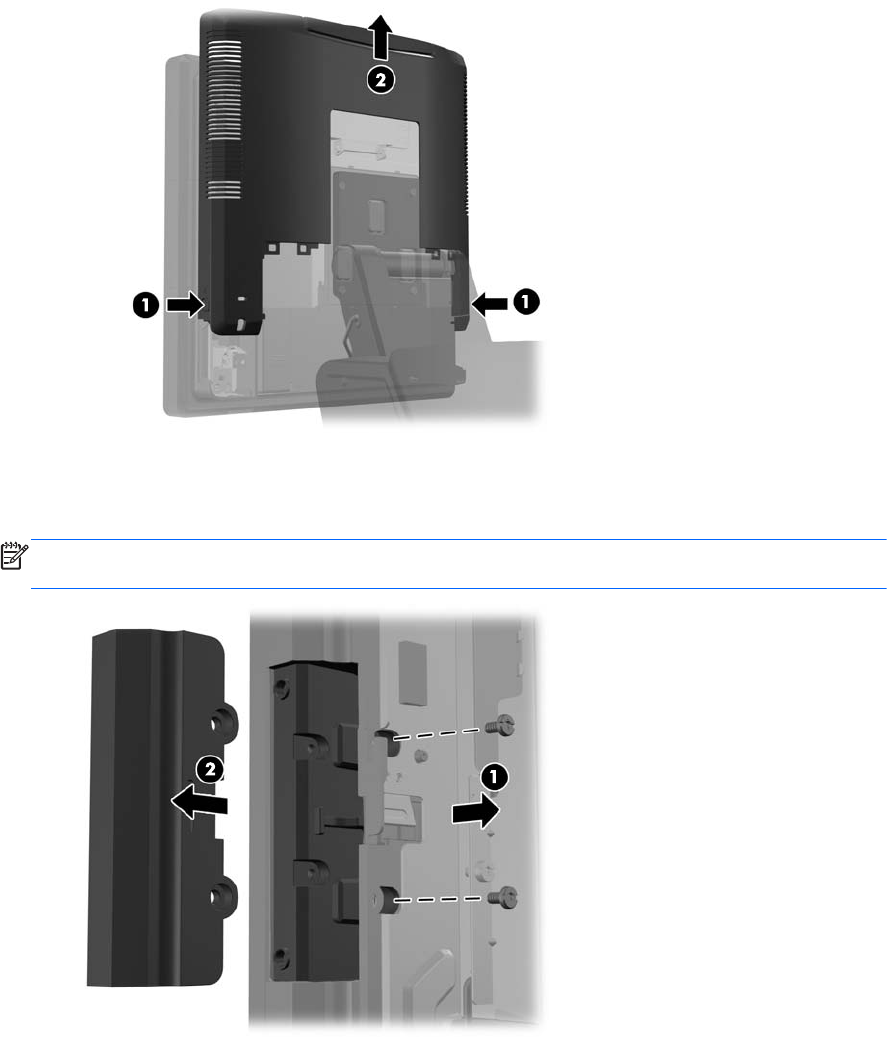

4. Press inward on the buttons located near the bottom sides of the display head's back panel (1)
then slide the back panel up and off the display head (2).
5. Remove the two screws that attach the USB cover plate to the display head (1) then slide the
cover plate off the display head (2). Remove only the cover plate that is in the location where
you want to install the USB module.
NOTE: There is a small “fingernail” slot in the center of the interior edge of the USB cover plate
that can be used to help slide the cover plate off the unit.
20 Chapter 2 Hardware Upgrades ENWW
