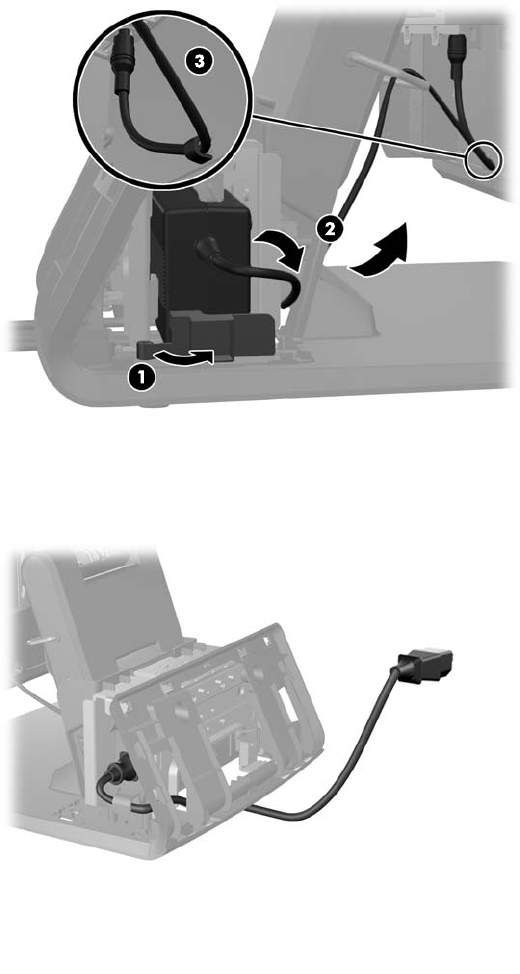

10. Close the small door at the base of the power supply housing (1). Route the power supply cord
through side of the base, then out through the center of the base (2) and up through the cable
retainer on the neck of the stand. Insert the cord into the cable retainer clip next to the power
port (3) and connect the cord to the DC In power port.
11. Route the AC power cord through the bottom of the stand's base, then through the cavity inside
the base and connect the cord to the power supply brick. Insert the cord into the cable retainer
clip on the side of the base and connect the other end of the cord to an electrical outlet.
